INC5006AC1-T150
DESCRIPTION
INC5006AC1 is a silicon NPN epitaxial type transistor.
It is designed with high collector current and small VCE(sat).
FEATURE
- Super mini package for easy mounting
- High collector current(IC=3A)
- Low collector saturation voltage
(VCE（sat）<0.3Vmax；IC=1A、IB=20m A)
APPLICATION Switching, Small type motor drive
2.8 1.90 0.95 0.95
FOR HIGH CURRENT DRIVE APPLICATION SILICON NPN EPITAXIAL TYPE

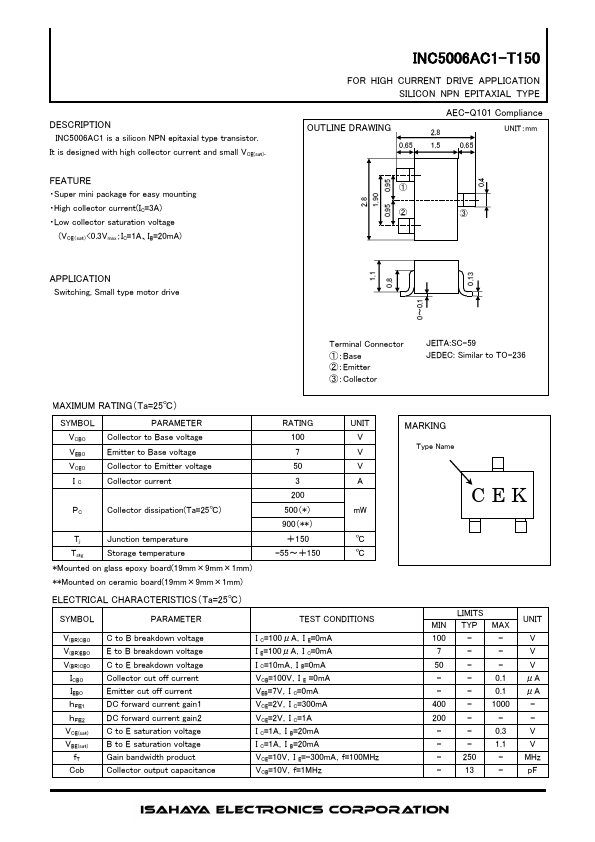

OUTLINE DRAWING
AEC-Q101 pliance
2.8 1.5 0.65
UNIT：mm
①
②
③
1.1 0.8 0～0.1 0.13
Terminal Connector ①：Base ②：Emitter ③：Collector
JEITA:SC-59 JEDEC: Similar to TO-236
MAXIMUM RATING（Ta=25℃）
SYMBOL
PARAMETER
VCBO
Collector to Base voltage
VEBO
Emitter to Base voltage
VCEO
Collector to Emitter voltage
Collector current
Collector dissipation(Ta=25℃)
Tj
Junction temperature
Tstg
Storage temperature
- Mounted on glass epoxy board(19mm×9mm×1mm)...
