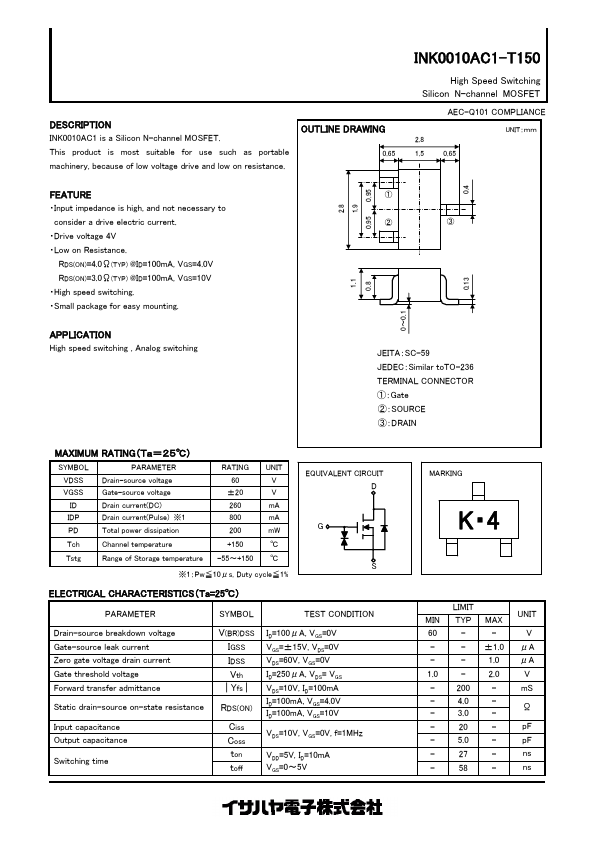

INK0010AC1-T150
DESCRIPTION
INK0010AC1 is a Silicon N-channel MOSFET. This product is most suitable for use such as portable machinery, because of low voltage drive and low on resistance.
OUTLINE DRAWING
High Speed Switching Silicon N-channel MOSFET
AEC-Q101 PLIANCE
UNIT：ｍｍ
2.8 1.9 0.95 0.95
FEATURE
- Input impedance is high, and not necessary to consider a drive electric current.
- Drive voltage 4V
- Low on Resistance.
RDS(ON)=4.0Ω(TYP) @ID=100m A, VGS=4.0V RDS(ON)=3.0Ω(TYP) @ID=100m A, VGS=10V
- High speed switching.
- Small package for easy mounting.
APPLICATION
High speed switching , Analog switching
1.1 0.8 0～0.1
①
②
③
JEITA：SC-59 JEDEC：Similar to TO-236 TERMINAL CONNECTOR ①：Gate ②：SOURCE ③：DRAIN
MAXIMUM RATING（Ｔａ＝２５℃）
SYMBOL VDSS VGSS ID IDP PD
PARAMETER Drain-source voltage Gate-source voltage Drain current(DC) Drain current(Pulse) ※1 Total power dissipation
RATING 60
±20 260 800 200
UNIT V V m A m A m W
Tch
Channel temperature
+150
℃...
