MC2840
DESCRIPTION
OUTLINE DRAWING

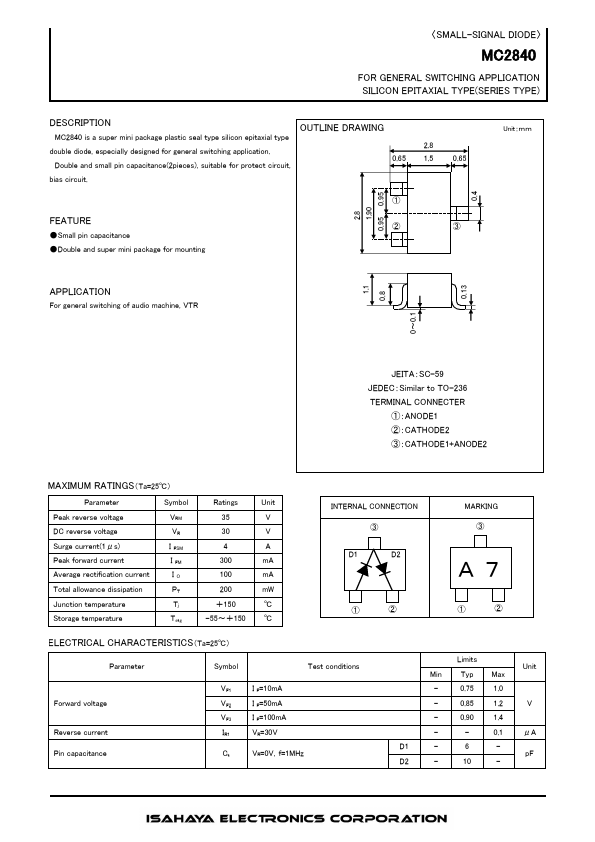

MC2840 is a super mini package plastic seal type silicon epitaxial type double diode, especially designed for general switching application. Double and small pin capacitance(2pieces), suitable for protect circuit,
2.8 0.65 1.5 0.65 bias circuit.
①
FEATURE
- Small pin capacitance
- Double and super mini package for mounting
②
③
2.8 1.90 0.95 0.95
Unit：ｍｍ
APPLICATION
For general switching of audio machine, VTR
1.1 0.8 0～0.1 0.13
JEITA：SC-59 JEDEC：Similar to TO-236 TERMINAL CONNECTER
①：ANODE1 ②：CATHODE2 ③：CATHODE1+ANODE2
MAXIMUM RATINGS（Ta=25℃）
Parameter
Symbol
Peak reverse voltage
DC reverse voltage
Surge current(1μs)
I FSM
Peak forward current
I FM
Average rectification current
Total allowance dissipation
Junction temperature
Tj
Storage temperature
Tstg
Ratings
Unit...
