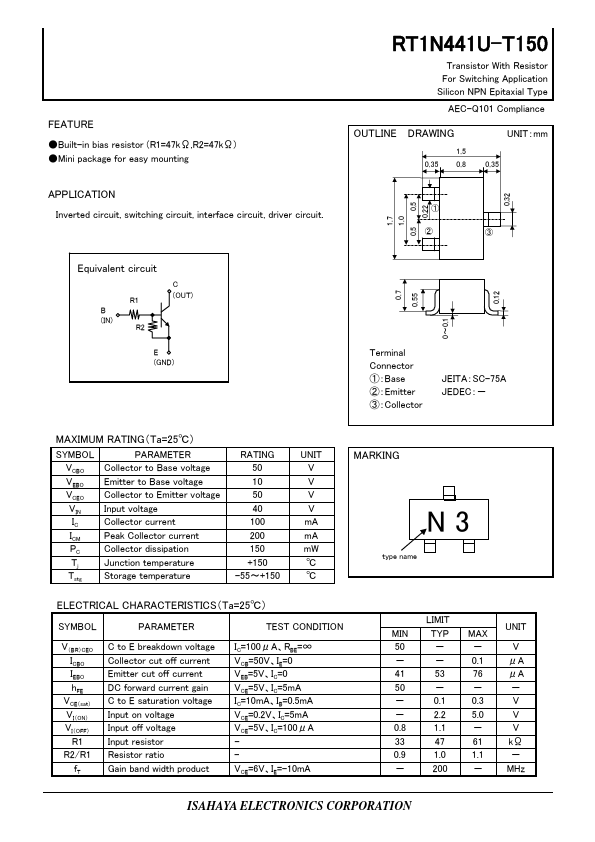

RT1N441U-T150
RT1N441U-T150 is Silicon NPN Epitaxial Type Transistor manufactured by Isahaya Electronics Corporation.
FEATURE
- Built-in bias resistor (R1=47kΩ,R2=47kΩ)
- Mini package for easy mounting
APPLICATION Inverted circuit, switching circuit, interface circuit, driver circuit.
Transistor With Resistor For Switching Application Silicon NPN Epitaxial Type
AEC-Q101 pliance
OUTLINE DRAWING
1.5 0.35 0.8
UNIT：mm
①
②
③
1.7 1.0 0.5 0.5
0.22 0.32
Equivalent circuit
R1 B (IN)
R2
C (OUT)
E (GND)
0.7 0.55 0～0.1 0.12
Terminal Connector ①：Base ②：Emitter ③：Collector
JEITA：SC-75A JEDEC：－
MAXIMUM RATING（Ta=25℃）
SYMBOL
PARAMETER
VCBO Collector to Base voltage
VEBO Emitter to Base voltage
VCEO Collector to Emitter voltage
VIN Input voltage
Collector...
