RT1P130S datasheet PDF by Isahaya Electronics Corporation.
This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | RT1P130S |
|---|---|
| Datasheet | RT1P130S RT1P130C Datasheet (PDF) |
| File Size | 477.18 KB |
| Manufacturer | Isahaya Electronics Corporation |
| Description | Silicon PNP Epitaxial Type Transistor |
|
|

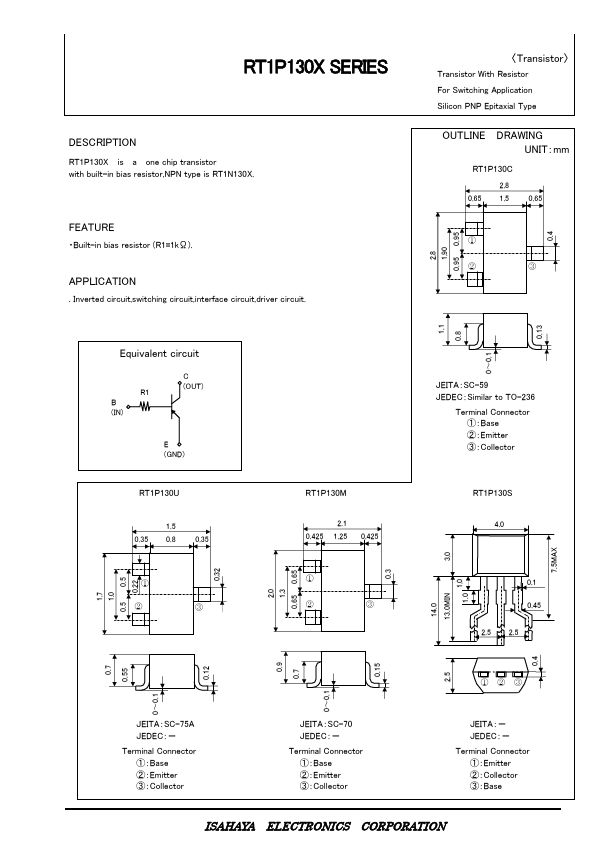

RT1P130X is a one chip transistor with built-in bias resistor,NPN type is RT1N130X.
View all Isahaya Electronics Corporation datasheets
| Part Number | Description |
|---|---|
| RT1P130C | Silicon PNP Epitaxial Type Transistor |
| RT1P130M | Silicon PNP Epitaxial Type Transistor |
| RT1P130U | Silicon PNP Epitaxial Type Transistor |
| RT1P136C | Silicon PNP Epitaxial Type Transistor |
| RT1P136M | Silicon PNP Epitaxial Type Transistor |
| RT1P136S | Silicon PNP Epitaxial Type Transistor |
| RT1P136U | Silicon PNP Epitaxial Type Transistor |
| RT1P137L | Silicon PNP Epitaxial Type Transistor |
| RT1P137P | Silicon PNP Epitaxial Type Transistor |
| RT1P137S | Silicon PNP Epitaxial Type Transistor |
