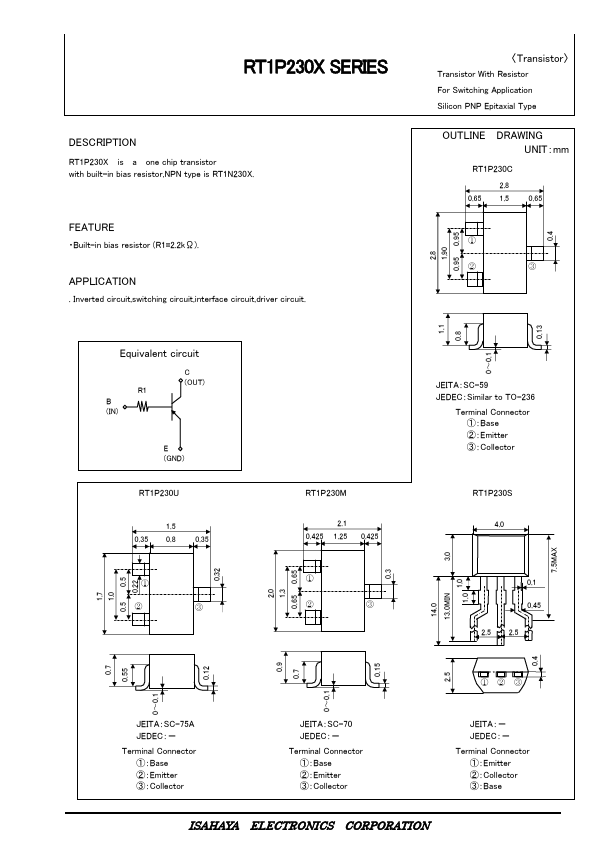

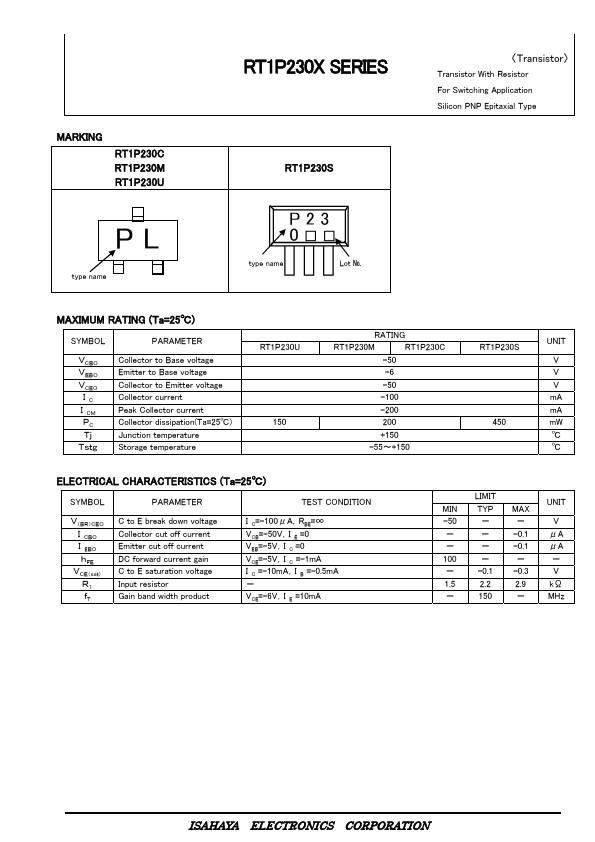

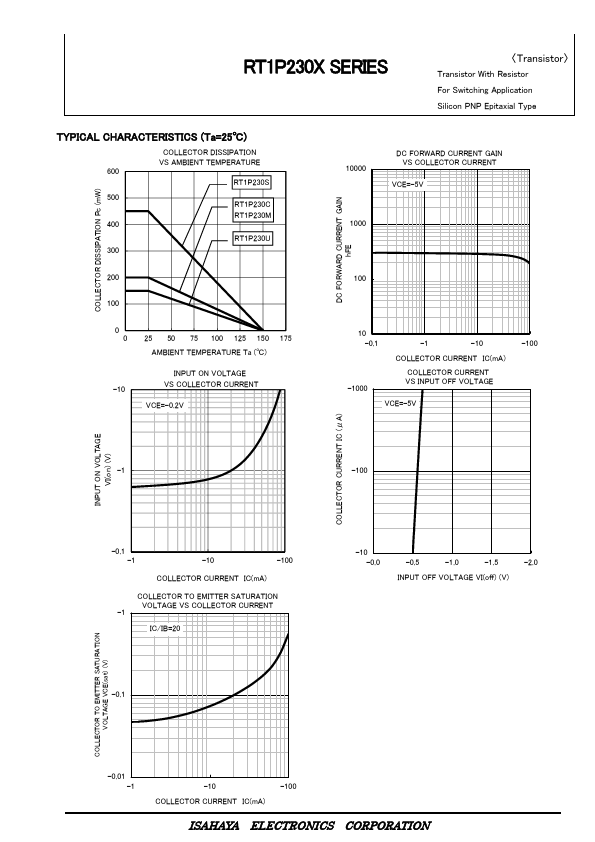

RT1P230C datasheet PDF by Isahaya Electronics Corporation.
This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | RT1P230C |
|---|---|
| Datasheet | RT1P230C RT1P230U Datasheet (PDF) |
| File Size | 478.69 KB |
| Manufacturer | Isahaya Electronics Corporation |
| Description | Silicon PNP Epitaxial Type Transistor |
|
|
RT1P230X is a one chip transistor with built-in bias resistor,NPN type is RT1N230X.
View all Isahaya Electronics Corporation datasheets
| Part Number | Description |
|---|---|
| RT1P230M | Silicon PNP Epitaxial Type Transistor |
| RT1P230S | Silicon PNP Epitaxial Type Transistor |
| RT1P230U | Silicon PNP Epitaxial Type Transistor |
| RT1P231C | Silicon PNP Epitaxial Type Transistor |
| RT1P231M | Silicon PNP Epitaxial Type Transistor |
| RT1P231S | Silicon PNP Epitaxial Type Transistor |
| RT1P231U | Silicon PNP Epitaxial Type Transistor |
| RT1P234C | Silicon PNP Epitaxial Type Transistor |
| RT1P234M | Silicon PNP Epitaxial Type Transistor |
| RT1P234S | Silicon PNP Epitaxial Type Transistor |
