Datasheet Details
| Part number | RT1P234U |
|---|---|
| Manufacturer | Isahaya Electronics Corporation |
| File Size | 506.09 KB |
| Description | Silicon PNP Epitaxial Type Transistor |
| Download | RT1P234U Download (PDF) |
|
|
Overview: RT1P234X SERIES.
Download the RT1P234U datasheet PDF. This datasheet also includes the RT1P234C variant, as both parts are published together in a single manufacturer document.
| Part number | RT1P234U |
|---|---|
| Manufacturer | Isahaya Electronics Corporation |
| File Size | 506.09 KB |
| Description | Silicon PNP Epitaxial Type Transistor |
| Download | RT1P234U Download (PDF) |
|
|
|

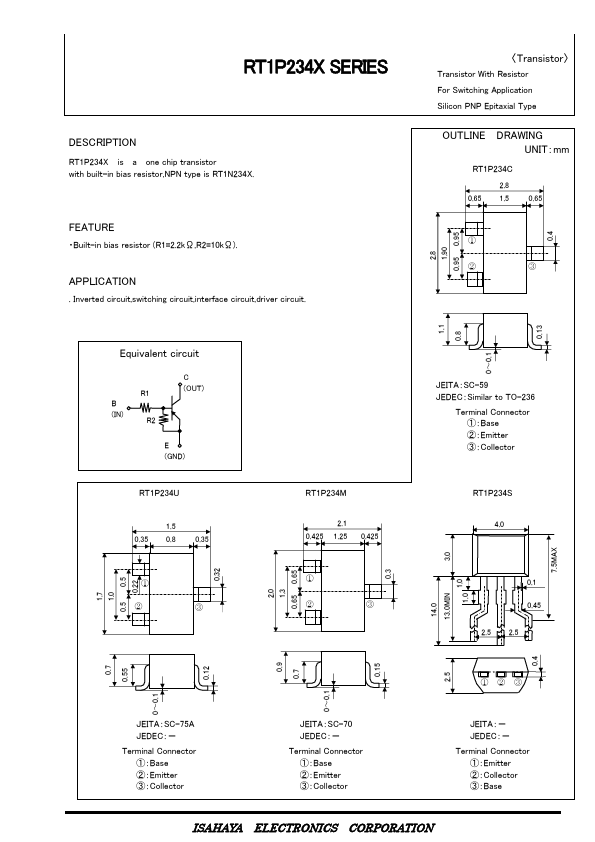

RT1P234X is a one chip transistor with built-in bias resistor,NPN type is RT1N234X.
| Part Number | Description |
|---|---|
| RT1P234C | Silicon PNP Epitaxial Type Transistor |
| RT1P234M | Silicon PNP Epitaxial Type Transistor |
| RT1P234S | Silicon PNP Epitaxial Type Transistor |
| RT1P230C | Silicon PNP Epitaxial Type Transistor |
| RT1P230M | Silicon PNP Epitaxial Type Transistor |
| RT1P230S | Silicon PNP Epitaxial Type Transistor |
| RT1P230U | Silicon PNP Epitaxial Type Transistor |
| RT1P231C | Silicon PNP Epitaxial Type Transistor |
| RT1P231M | Silicon PNP Epitaxial Type Transistor |
| RT1P231S | Silicon PNP Epitaxial Type Transistor |
