RT1P237C

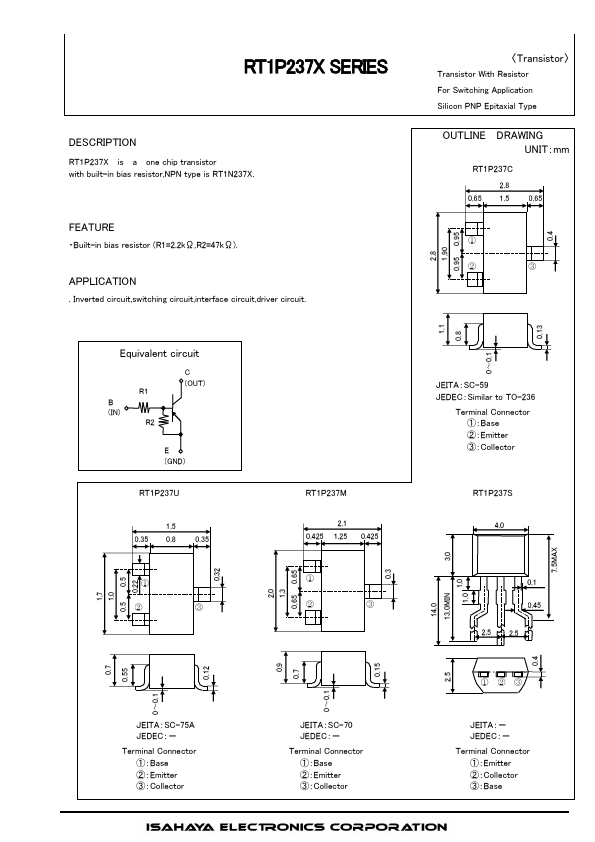

DESCRIPTION
RT1P237X is a one chip transistor with built-in bias resistor,NPN type is RT1N237X.
FEATURE
- Built-in bias resistor (R1=2.2kΩ,R2=47kΩ).
APPLICATION
. Inverted circuit,switching circuit,interface circuit,driver circuit.
Equivalent circuit
R1
B (IN)
R2
C (OUT)
E (GND)
RT1P237U
1.5 0.35 0.8 0.35
①
②
③
2.0 1.3 0.65 0.65
RT1P237M
2.1 0.425 1.25 0.425
①
②
③
1.7 1.0 0.5 0.5
0.22 0.32
0.9 0.7 0～0.1
0.7 0.55 0～0.1 0.12
JEITA：SC-75A JEDEC：－
Terminal Connector ①：Base ②：Emitter ③：Collector
JEITA：SC-70 JEDEC：－
Terminal Connector ①：Base ②：Emitter ③：Collector
0.15 2.5
2.8 1.90 0.95 0.95
〈Transistor〉
Transistor With Resistor For Switching Application Silicon PNP Epitaxial Type
OUTLINE DRAWING UNIT：mm
RT1P237C...
