RT1P241M datasheet PDF by Isahaya Electronics Corporation.
This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | RT1P241M |
|---|---|
| Datasheet | RT1P241M RT1P241C Datasheet (PDF) |
| File Size | 460.53 KB |
| Manufacturer | Isahaya Electronics Corporation |
| Description | Silicon PNP Epitaxial Type Transistor |
|
|

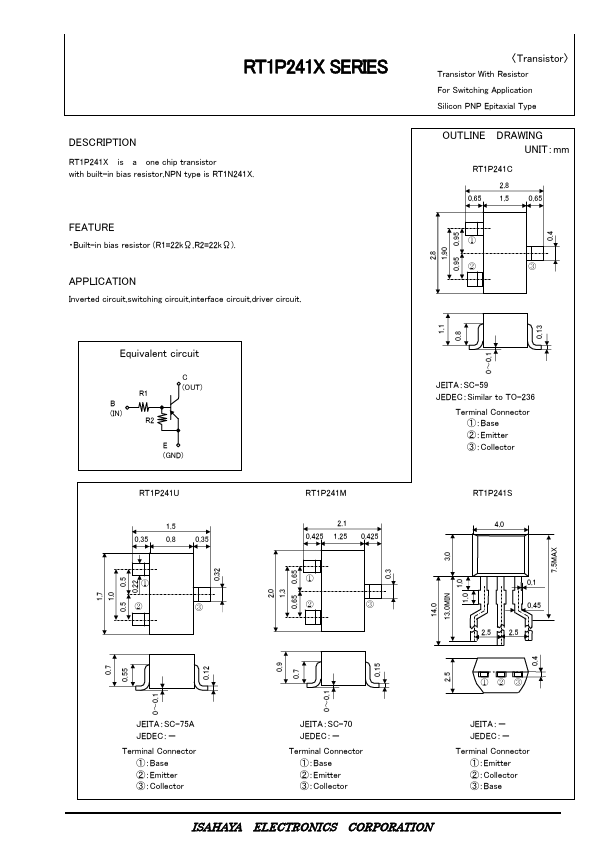

RT1P241X is a one chip transistor with built-in bias resistor,NPN type is RT1N241X.
View all Isahaya Electronics Corporation datasheets
| Part Number | Description |
|---|---|
| RT1P241C | Silicon PNP Epitaxial Type Transistor |
| RT1P241S | Silicon PNP Epitaxial Type Transistor |
| RT1P241U | Silicon PNP Epitaxial Type Transistor |
| RT1P241U-T150 | Silicon PNP Epitaxial Type Transistor |
| RT1P240C | Silicon PNP Epitaxial Type Transistor |
| RT1P240M | Silicon PNP Epitaxial Type Transistor |
| RT1P240S | Silicon PNP Epitaxial Type Transistor |
| RT1P240U | Silicon PNP Epitaxial Type Transistor |
| RT1P242C | Silicon PNP Epitaxial Type Transistor |
| RT1P242M | Silicon PNP Epitaxial Type Transistor |
