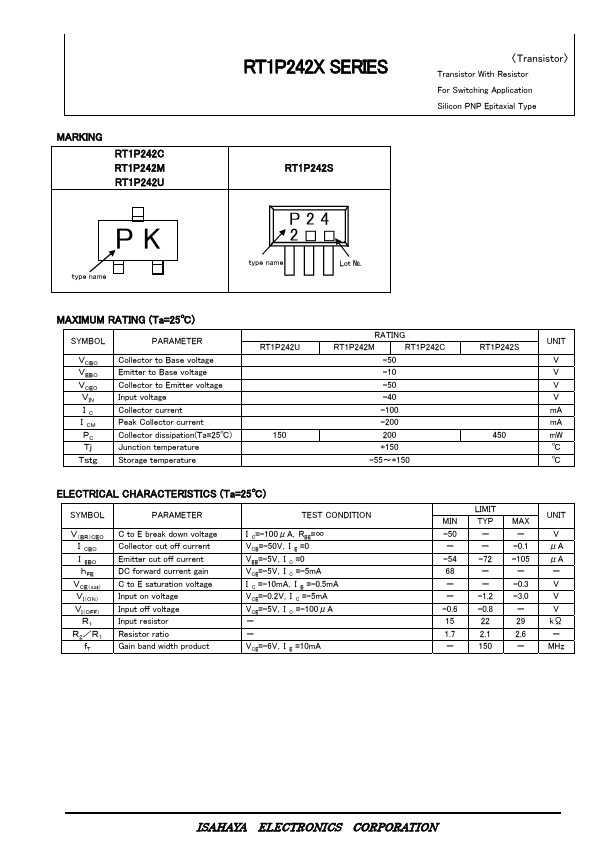

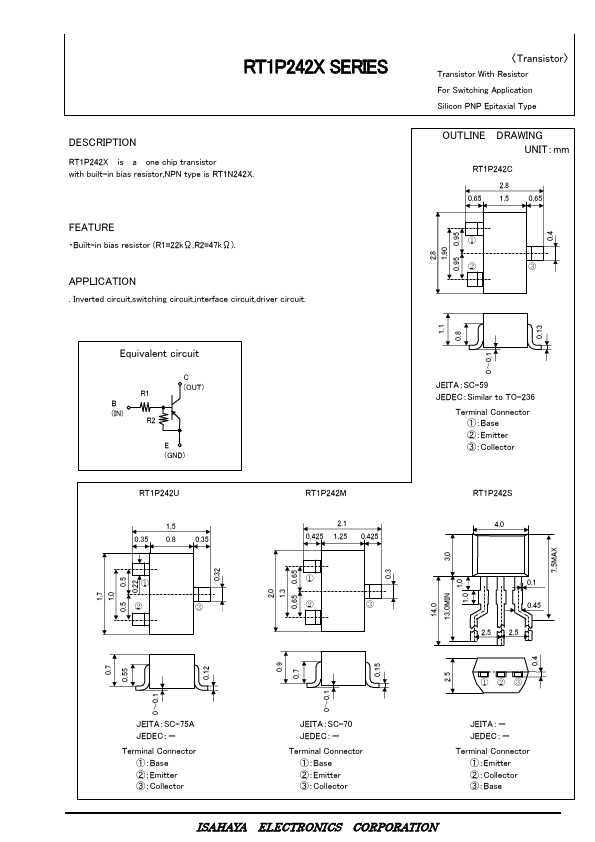

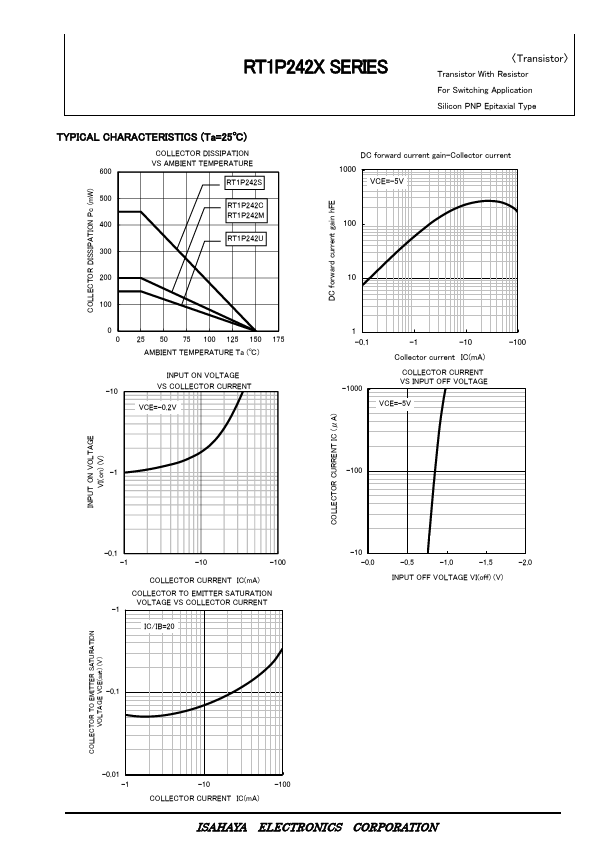

RT1P242M datasheet PDF by Isahaya Electronics Corporation.
This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | RT1P242M |
|---|---|
| Datasheet | RT1P242M RT1P242C Datasheet (PDF) |
| File Size | 478.84 KB |
| Manufacturer | Isahaya Electronics Corporation |
| Description | Silicon PNP Epitaxial Type Transistor |
|
|
RT1P242X is a one chip transistor with built-in bias resistor,NPN type is RT1N242X.
View all Isahaya Electronics Corporation datasheets
| Part Number | Description |
|---|---|
| RT1P242C | Silicon PNP Epitaxial Type Transistor |
| RT1P242S | Silicon PNP Epitaxial Type Transistor |
| RT1P242U | Silicon PNP Epitaxial Type Transistor |
| RT1P240C | Silicon PNP Epitaxial Type Transistor |
| RT1P240M | Silicon PNP Epitaxial Type Transistor |
| RT1P240S | Silicon PNP Epitaxial Type Transistor |
| RT1P240U | Silicon PNP Epitaxial Type Transistor |
| RT1P241C | Silicon PNP Epitaxial Type Transistor |
| RT1P241M | Silicon PNP Epitaxial Type Transistor |
| RT1P241S | Silicon PNP Epitaxial Type Transistor |
