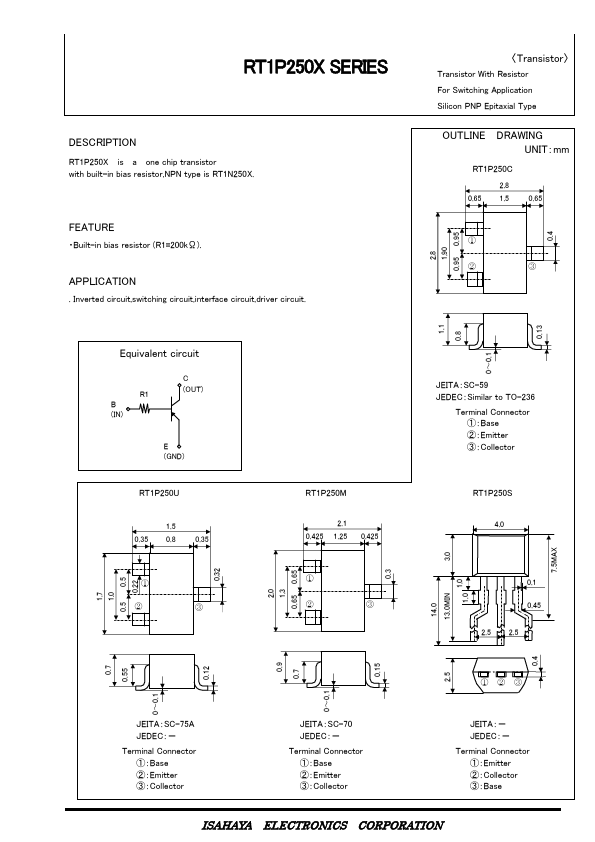

RT1P250S
DESCRIPTION
RT1P250X is a one chip transistor with built-in bias resistor,NPN type is RT1N250X.
FEATURE
- Built-in bias resistor (R1=200kΩ).
APPLICATION
. Inverted circuit,switching circuit,interface circuit,driver circuit.
2.8 1.90 0.95 0.95
〈Transistor〉
Transistor With Resistor For Switching Application Silicon PNP Epitaxial Type
OUTLINE DRAWING UNIT：mm
RT1P250C
2.8 0.65 1.5 0.65
①
②
③
1.1 0.8 0～0.1 0.13
0.4 7.5MAX
1.7 1.0 0.5 0.5
0.22 0.32
Equivalent circuit
R1 B (IN)
C (OUT)
E (GND)
RT1P250U
1.5 0.35 0.8 0.35
①
②
③
2.0 1.3 0.65 0.65
RT1P250M
2.1 0.425 1.25 0.425
①
②
③
13.0MIN
1.0...
