RT1P430M Overview

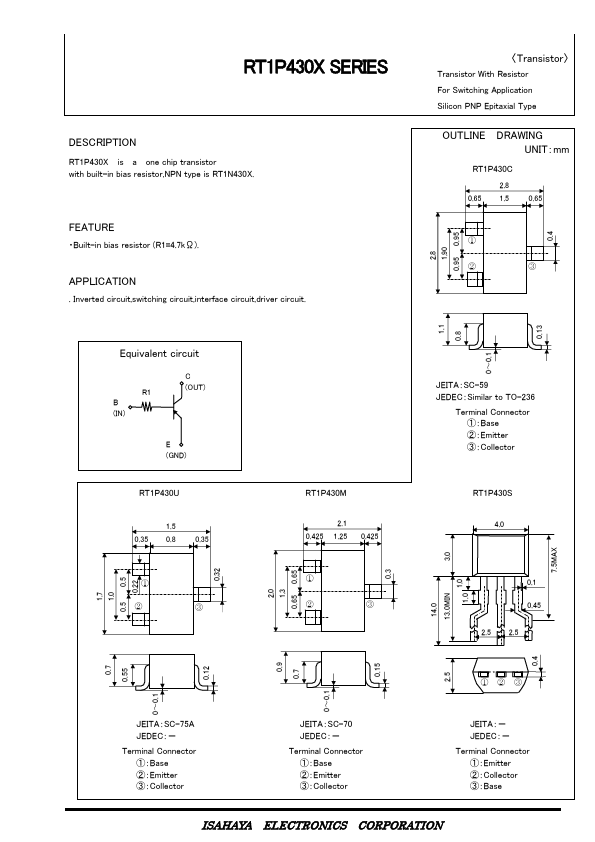

RT1P430X is a one chip transistor with built-in bias resistor,NPN type is RT1N430X.
RT1P430M Details
| Part number | RT1P430M |
|---|---|
| Datasheet | RT1P430M RT1P430C Datasheet (PDF) |
| File Size | 478.47 KB |
| Manufacturer | Isahaya Electronics Corporation |
| Description | Silicon PNP Epitaxial Type Transistor |
|
|
