RT1P431M Overview
RT1P431X is a one chip transistor with built-in bias resistor,NPN type is RT1N431X.
RT1P431M Details
| Part number | RT1P431M |
|---|---|

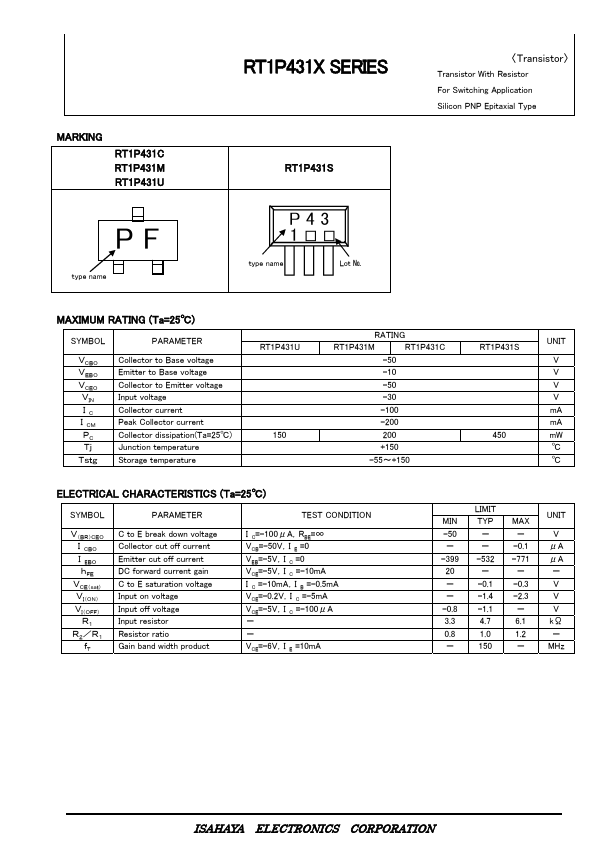

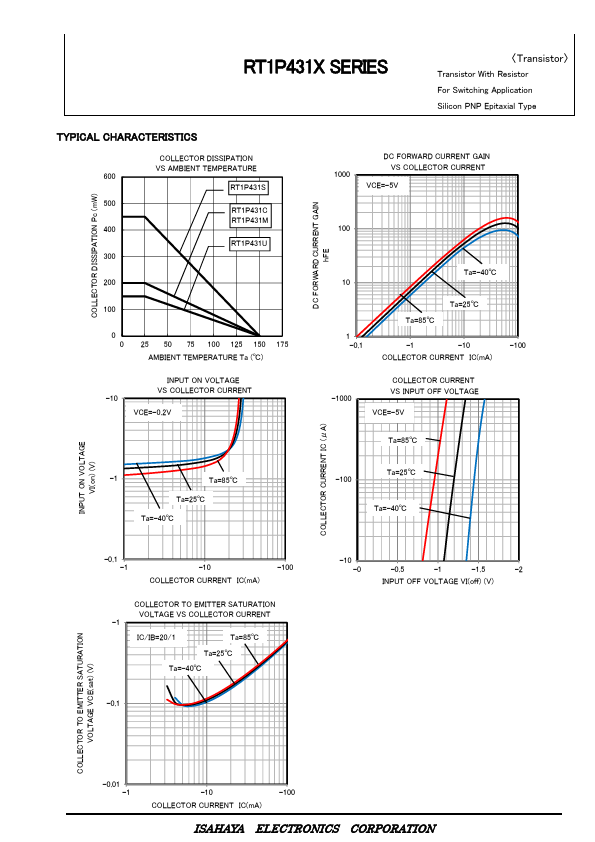

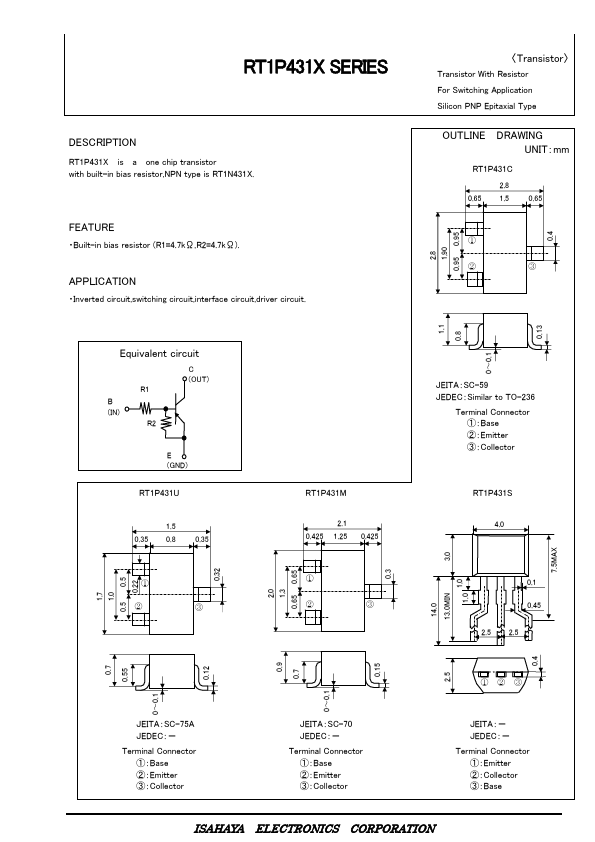

| Datasheet | RT1P431M RT1P431C Datasheet (PDF) |
| File Size | 508.94 KB |
| Manufacturer | Isahaya Electronics Corporation |
| Description | Silicon PNP Epitaxial Type Transistor |
|
|
