Datasheet Details
| Part number | RT1P432S |
|---|---|
| Manufacturer | Isahaya Electronics Corporation |
| File Size | 478.97 KB |
| Description | Silicon PNP Epitaxial Type Transistor |
| Download | RT1P432S Download (PDF) |
|
|

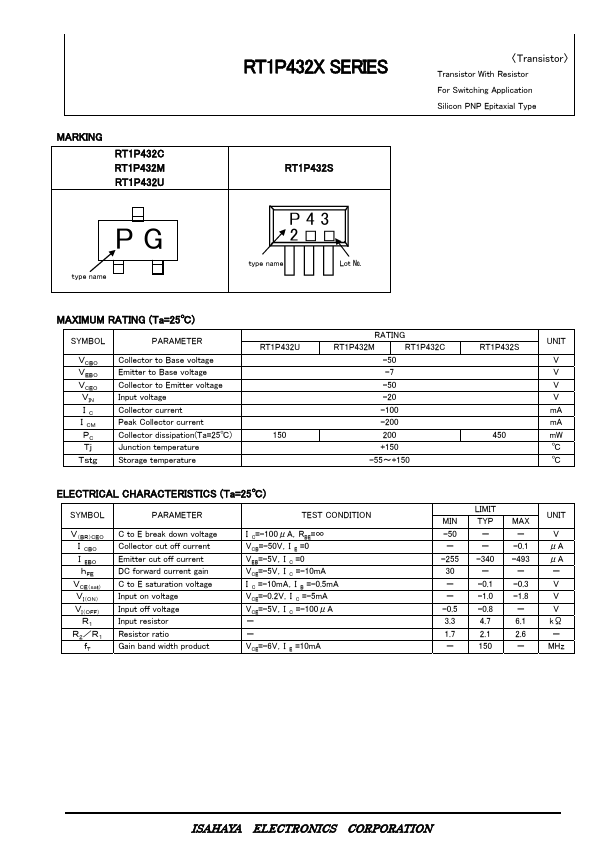

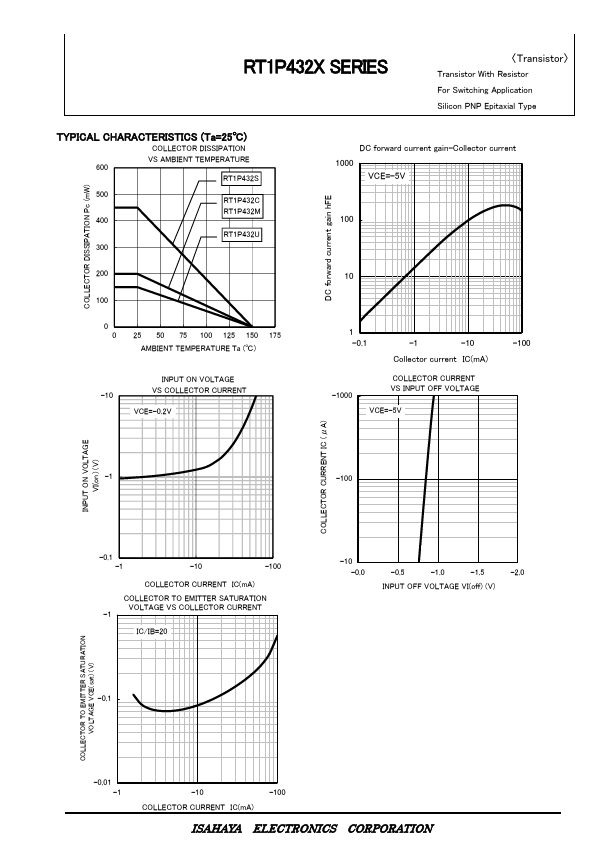

Overview: RT1P432X SERIES.
Download the RT1P432S datasheet PDF. This datasheet also includes the RT1P432C variant, as both parts are published together in a single manufacturer document.
| Part number | RT1P432S |
|---|---|
| Manufacturer | Isahaya Electronics Corporation |
| File Size | 478.97 KB |
| Description | Silicon PNP Epitaxial Type Transistor |
| Download | RT1P432S Download (PDF) |
|
|
|

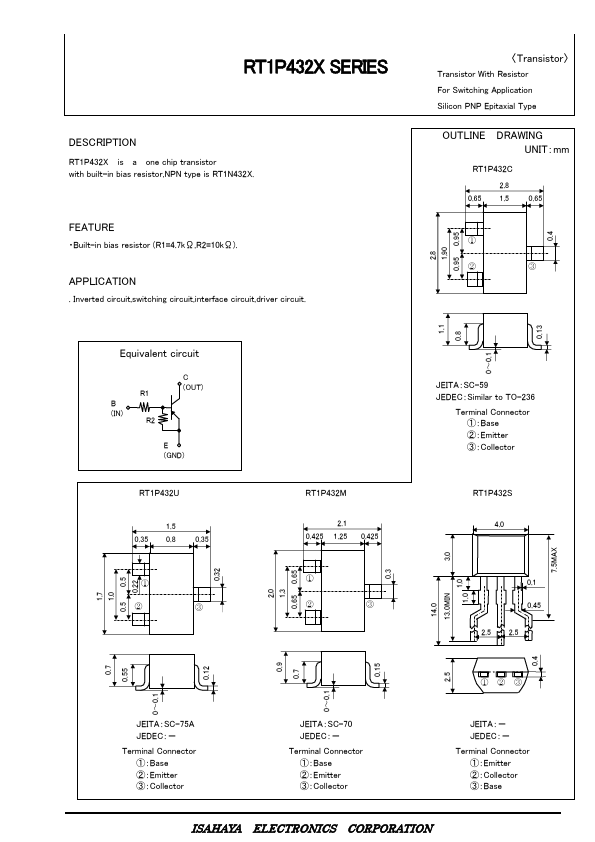

RT1P432X is a one chip transistor with built-in bias resistor,NPN type is RT1N432X.
| Part Number | Description |
|---|---|
| RT1P432C | Silicon PNP Epitaxial Type Transistor |
| RT1P432M | Silicon PNP Epitaxial Type Transistor |
| RT1P432U | Silicon PNP Epitaxial Type Transistor |
| RT1P430C | Silicon PNP Epitaxial Type Transistor |
| RT1P430M | Silicon PNP Epitaxial Type Transistor |
| RT1P430S | Silicon PNP Epitaxial Type Transistor |
| RT1P430U | Silicon PNP Epitaxial Type Transistor |
| RT1P431C | Silicon PNP Epitaxial Type Transistor |
| RT1P431M | Silicon PNP Epitaxial Type Transistor |
| RT1P431S | Silicon PNP Epitaxial Type Transistor |
