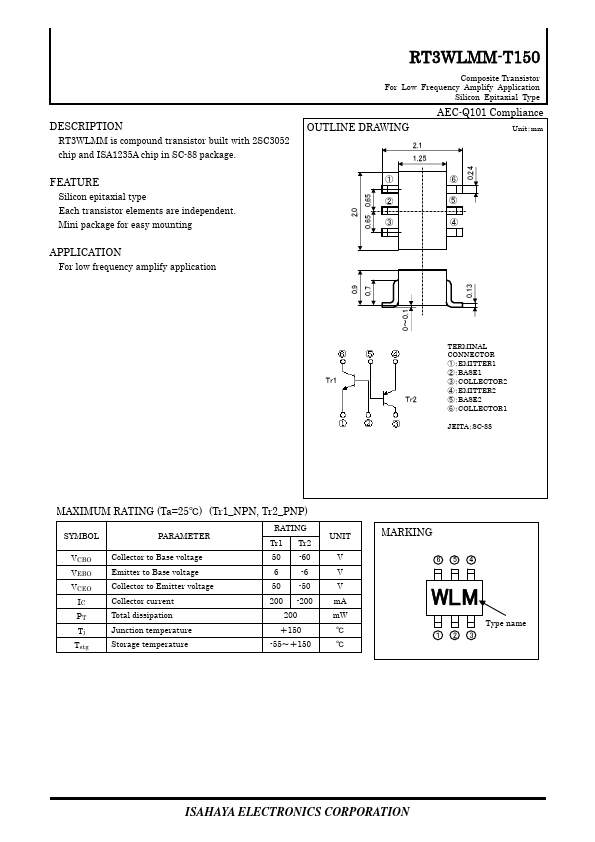

RT3WLMM-T150
DESCRIPTION
RT3WLMM is pound transistor built with 2SC3052 chip and ISA1235A chip in SC-88 package. posite Transistor For Low Frequency Amplify Application
Silicon Epitaxial Type
AEC-Q101 pliance
OUTLINE DRAWING
Unit：mm
2.1 1.25
FEATURE
Silicon epitaxial type Each transistor elements are independent. Mini package for easy mounting
2.0 0.65 0.65
①
⑥
②
⑤
③
④
APPLICATION
For low frequency amplify application
0.9 0.7 0～0.1
TERMINAL
CONNECTOR
①：EMITTER1
②：BASE1
Tr1
③：COLLECTOR2
④：EMITTER2
Tr2
⑤：BASE2
⑥：COLLECTOR1
JEITA：SC-88
MAXIMUM RATING (Ta=25℃) (Tr1_NPN, Tr2_PNP)
SYMBOL
PARAMETER
RATING Tr1 Tr2
VCBO VEBO VCEO
IC PT Tj Tstg
Collector to Base voltage Emitter to Base voltage Collector to Emitter voltage Collector current Total dissipation Junction temperature Storage temperature
50...
