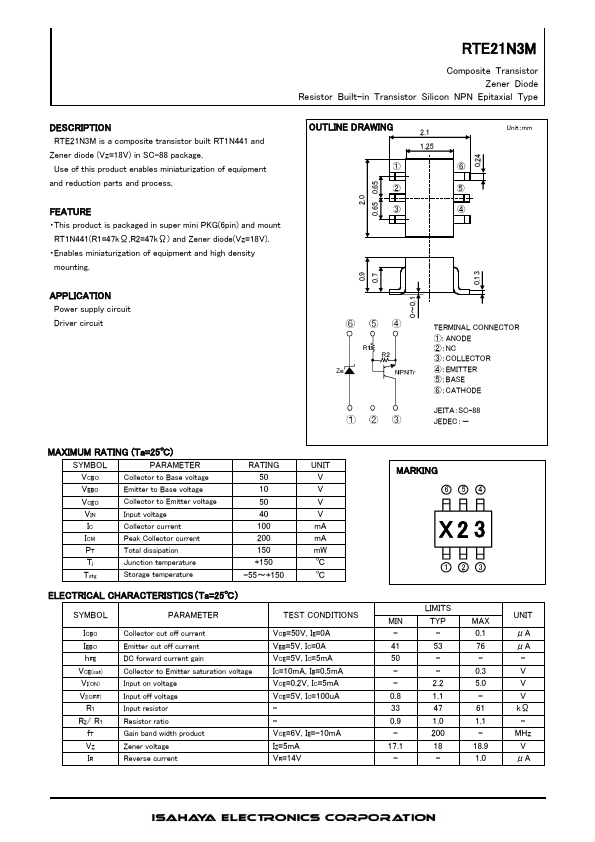

RTE21N3M
DESCRIPTION
RTE21N3M is a posite transistor built RT1N441 and Zener diode (Vz=18V) in SC-88 package. Use of this product enables miniaturization of equipment and reduction parts and process.
FEATURE
- This product is packaged in super mini PKG(6pin) and mount RT1N441(R1=47kΩ,R2=47kΩ) and Zener diode(Vz=18V).
- Enables miniaturization of equipment and high density mounting.
APPLICATION Power supply circuit Driver circuit
OUTLINE DRAWING
2.1 1.25
①
⑥
②
⑤
③
④
Unit：mm
2.0 0.65 0.65
0.9 0.7 0～0.1
TERMINAL CONNECTOR ①: ANODE ②：NC ③：COLLECTOR ④：EMITTER ⑤：BASE ⑥：CATHODE
JEITA：SC-88 JEDEC：－
MAXIMUM RATING (Ta=25℃)
SYMBOL
PARAMETER
VCBO VEBO
Collector to Base voltage Emitter to Base voltage
VCEO
Collector to Emitter voltage
Input voltage
Collector current
Peak Collector current
Total dissipation
Tj
Junction temperature
Tstg
Storage...
