VLA542-11R Datasheet Hybrid IC for driving IGBT modules

Manufacturer: Isahaya Electronics Corporation

VLA542-11R hybrid ic for driving igbt modules by Isahaya Electronics Corporation - Datasheet Preview

Datasheet Details

Part number	VLA542-11R
Manufacturer	Isahaya Electronics Corporation
File Size	247.43 KB
Description	Hybrid IC for driving IGBT modules
Datasheet	VLA542-11R Datasheet

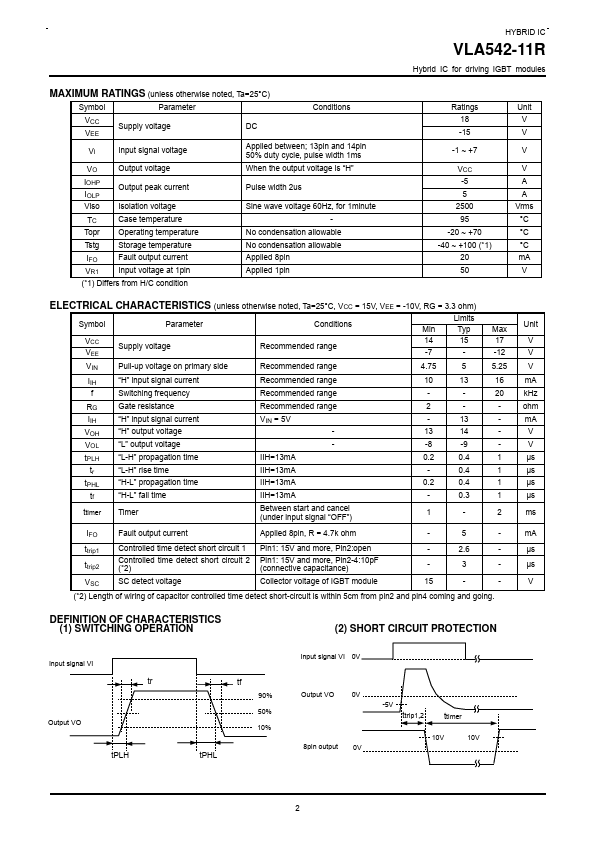

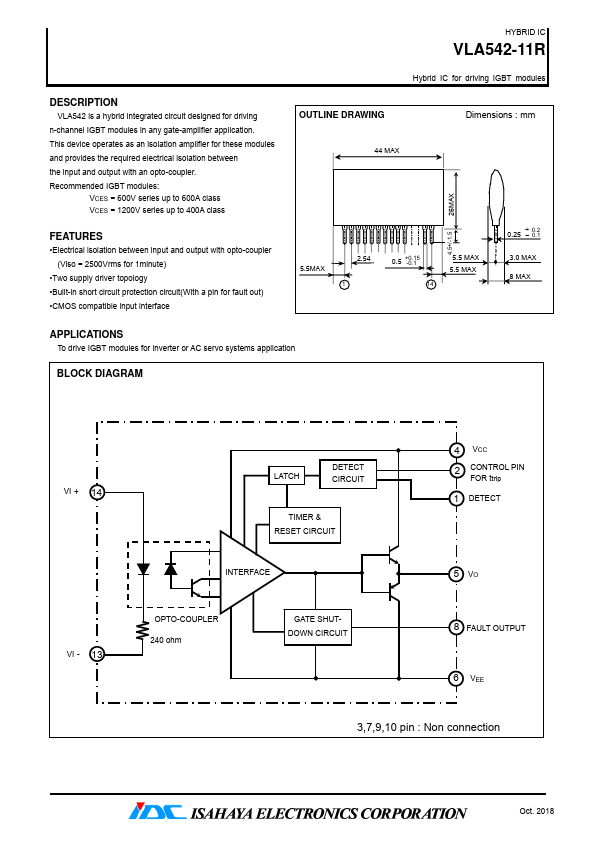

General Description

VLA542 is a hybrid integrated circuit designed for driving n-channel IGBT modules in any gate-amplifier application.

This device operates as an isolation amplifier for these modules and provides the required electrical isolation between the input and output with an opto-coupler.

Recommended IGBT modules: VCES = 600V series up to 600A class VCES = 1200V series up to 400A class

Overview

DESCRIPTION VLA542 is a hybrid integrated circuit designed for driving n-channel IGBT modules in any gate-amplifier application.

Key Features

Electrical isolation between input and output with opto-coupler (Viso = 2500Vrms for 1minute).
Two supply driver topology.
Built-in short circuit protection circuit(With a pin for fault out).
CMOS compatible input interface HYBRID IC VLA542-11R Hybrid IC for driving IGBT modules.
