JCET CJ92340

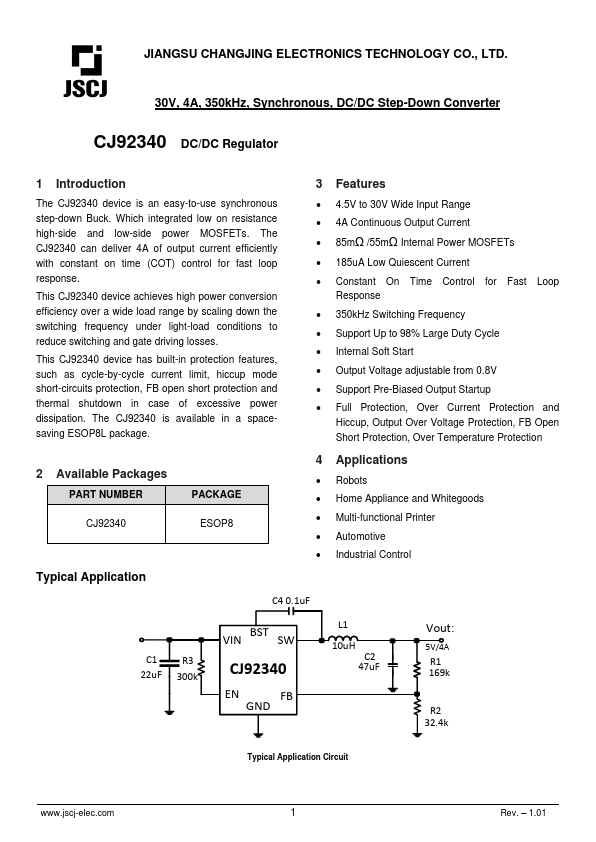

The CJ92340 device is an easy-to-use synchronous step-down Buck. The CJ92340 can deliver 4A of output current efficiently with constant on time (COT) control for fast loop response. This CJ92340 device achieves high power conversion efficiency over a wide load range by scaling down the switching frequency under light-load conditions to reduce switching and gate driving losses.| Part No. | CJ92340 |
|---|---|
| Datasheet | CJ92340 Download |
| Manufacturer |  JCET |
| Description | 30V 4A 350kHz DC/DC Step-Down Converter |
| Buy | Stock & Price |
FEATURES
● 4.5V to 30V Wide Input Range● 4A Continuous Output Current
● 85mΩ /55mΩ Internal Power MOSFETs
● 185uA Low Quiescent Current
● Constant On Time Control for Fast Loop Response
● 350kHz Switching Frequency
● Support Up to 98% Large Duty Cycle
● Internal Soft Start
● Output Voltage adjustable from 0.8V
● Support Pre-Biased Output Startup
● Full Protection, Over Current Protection and Hiccup, Output Over Voltage Protection, FB Open Short Protection, Over Temperature Protection 2 Available Packages PART NUMBER CJ92340 PACKAGE ESOP8 4
APPLICATIONS
● Robots● Home Appliance and Whitegoods
● Multi-functional Printer
● Automotive

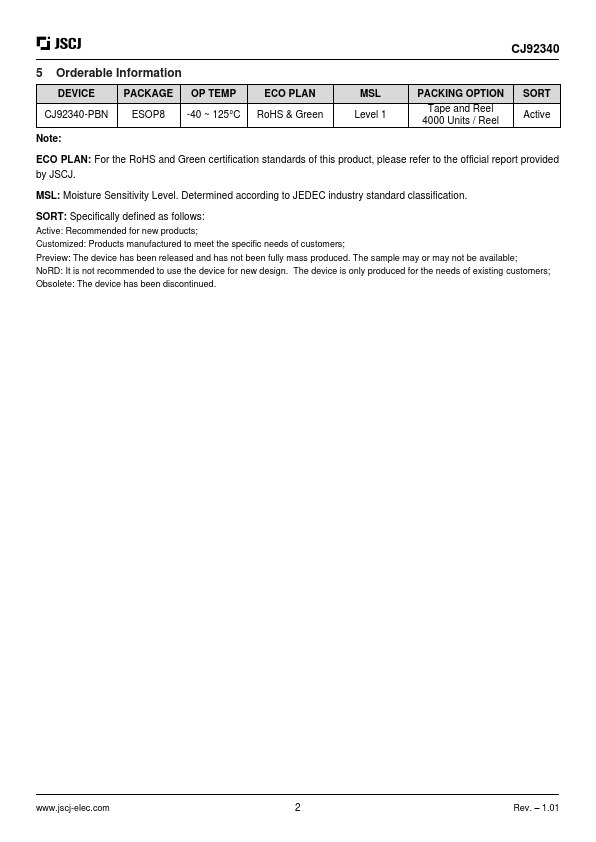

● Industrial Control Typical Application C4 0.1uF C1 R3 22uF 300k VIN BST SW CJ92340 EN GND FB L1 10uH C2 47uF Vout: 5V/4A R1 169k R2 32.4k Typical Application Circuit 1 Rev. – 1.01 CJ92340 5 Orderable Information DEVICE PACKAGE OP TEMP CJ92340-PBN ESOP8 -40 ~ 125°C ECO PLAN RoHS & Green Note: MSL Level 1 PACKING OPTION Tape and Reel 4000 Units / Reel SORT Active ECO PLAN: For the RoHS and Green certification standards of this product, please refer to the official report provided by JSCJ.
