FEATURES

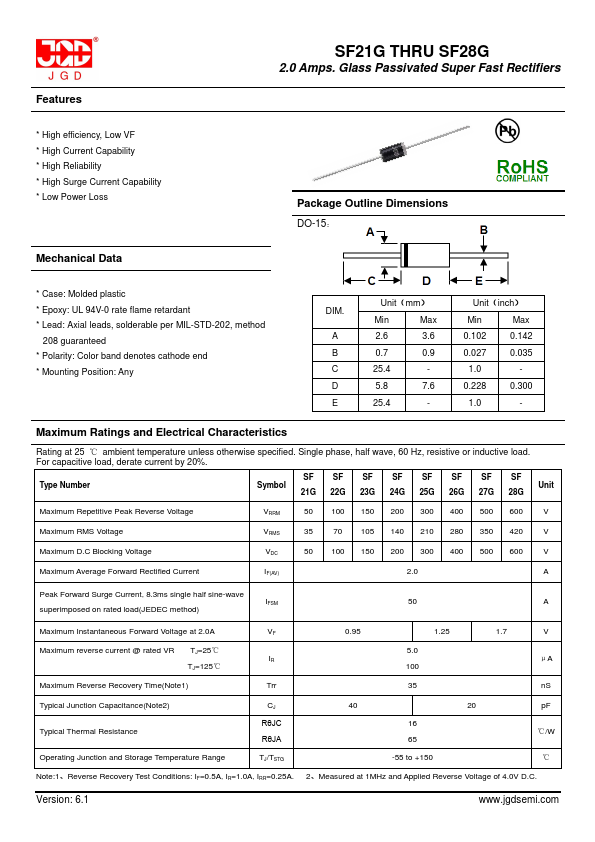

SF21G THRU SF28G 2.0 Amps. Glass Passivated Super Fast Rectifiers * High efficiency, Low VF * High Current Capability * High Reliability * High Surge Current Capability * Low Power Loss

MECHANICAL DATA

Package Outline Dimensions DO-15： * Case: Molded plastic * Epoxy: UL 94V-0 rate flame retardant * Lead: Axial leads, solderable per MIL-STD-202, method 208 guaranteed * Polarity: Color band denotes cathode end * Mounting Position: Any DIM. A B C D E Unit（mm） Min Max 2.6 3.6 0.7 0.9 25.4 - 5.8 7.6 25.4 - Unit（inch） Min Max 0.102 0.142 0.027 0.035 1.0 - 0.228 0.300 1.0 -

MAXIMUM RATINGS

and

ELECTRICAL CHARACTERISTICS

Rating at 25 ℃ ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%. Type Number SF SF SF SF SF SF SF SF Symbol Unit 21G 22G 23G 24G 25G 26G 27G 28G Maximum Repetitive Peak Reverse Voltage VRRM 50 100 150 200 300 400 500 600 V Maximum RMS Voltage VRMS 35 70 105 140 210 2...
