JW1515H - Offline QR GaN Flyback Controller

Datasheet Summary

Description

The JW®1515H is a controller for offline flyback with GaN, which

Features

  • quasi-resonant (QR) operation. QR control improves efficiency by reducing switching loss and also benefits EMI performance with nature frequency variation, and an internal frequency limitation to overcome the inherent disadvantages of QR flyback. The JW1515H combines PWM and PFM control at different input and load condition for highest average efficiency. The JW1515H comprises a HV pin for startup to eliminate conventional startup resistor and save standby mode energy consumption. It can comply.

📥 Download Datasheet

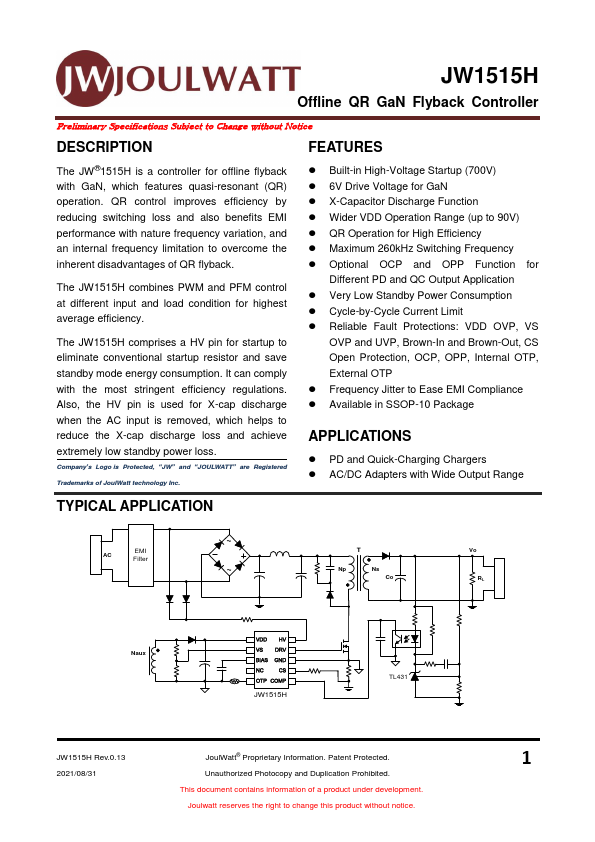

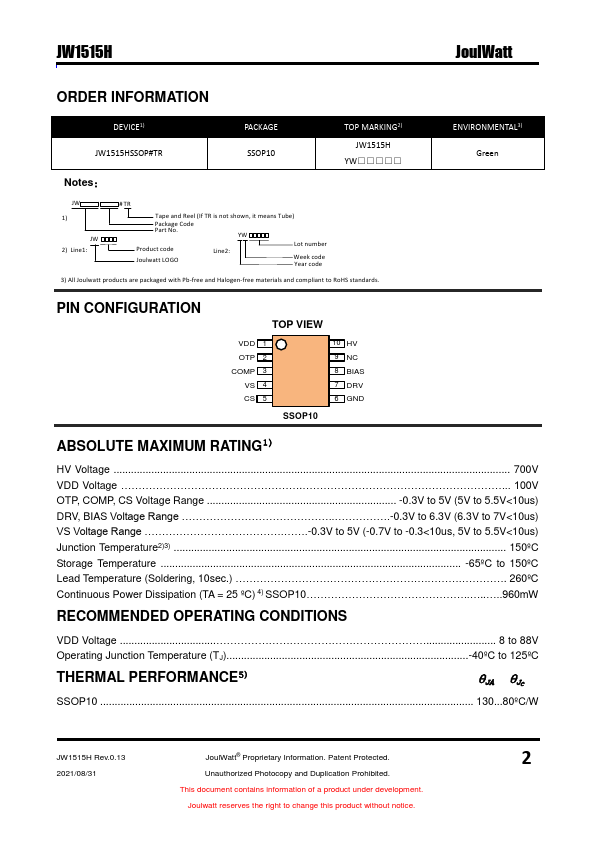

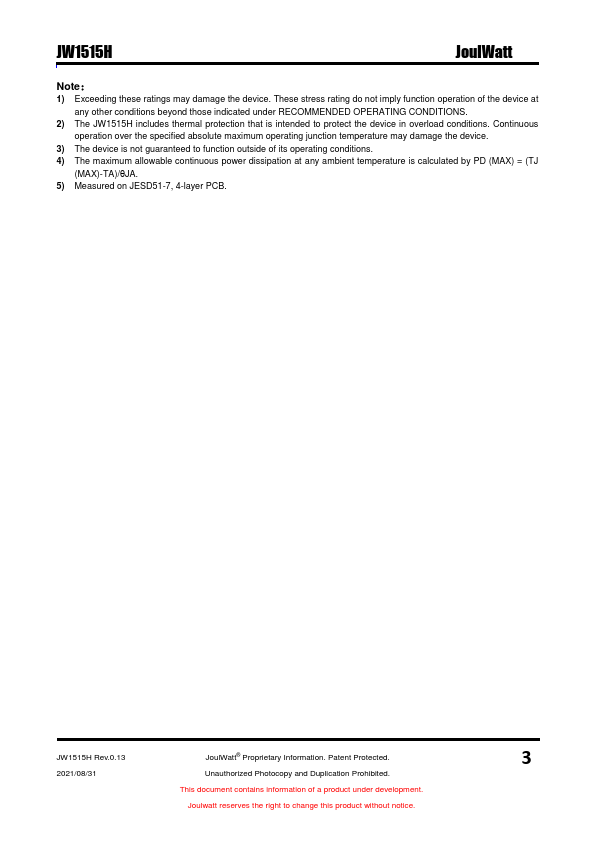

Datasheet preview – JW1515H

Datasheet Details

Part number JW1515H
Manufacturer JoulWatt
File Size 656.92 KB
Description Offline QR GaN Flyback Controller
Datasheet download datasheet JW1515H Datasheet
