JW1769B - Offline Step-down LED Regulator

This page provides the datasheet information for the JW1769B, a member of the JW1769A Offline Step-down LED Regulator family.

Datasheet Summary

Description

The JW®1769A/B/C is a constant current LED regulator with high current accuracy which applies to single stage step-down power factor corrected LED drivers.600V power MOS is integrated, which can significantly simplify the design of LED lighting system.

Features

  • No auxiliary winding 600V high voltage MOSFET integrated EMI friendly High current accuracy of line and load regulation High power factor with low output current-ripple Critical conduction mode High efficiency over wide operating range Cycle-by-cycle current limit LED short protection LED open protection Over-temperature protection Compact SOP7 package.

📥 Download Datasheet

Datasheet preview – JW1769B

Datasheet Details

Part number JW1769B
Manufacturer JoulWatt
File Size 675.36 KB
Description Offline Step-down LED Regulator
Datasheet download datasheet JW1769B Datasheet
Additional preview pages of the JW1769B datasheet.

📁 Similar Datasheet

  • JW1769B - Offline Step-down LED Regulator (SPMICRO)
  • JW1769A - Offline Step-down LED Regulator (SPMICRO)
  • JW1769C - Offline Step-down LED Regulator (SPMICRO)
  • JW1760 - Non-Isolated Buck LED Driver Controller (SPMICRO)
  • JW1763B - Non-isolated buck LED driver controller (SPMICRO)
  • JW1763C - Non-isolated buck LED driver controller (SPMICRO)
  • JW1758A - Offline Step-down LED Controller (SPMICRO)
  • JW1758B - Offline Step-down LED Controller (SPMICRO)
  • JW1758C - Offline Step-down LED Controller (SPMICRO)
  • JW1792 - Integrated 500V MOS Non-isolated Buck LED Driver (SPMICRO)
Other Datasheets by JoulWatt
  • JW1769A - Offline Step-down LED Regulator
  • JW1769C - Offline Step-down LED Regulator
  • JW1765 - Offline Step-down LED Controller
  • JW1757A - Offline Step-down LED Driver
  • JW1757B - Offline Step-down LED Driver
  • JW1757C - Offline Step-down LED Driver
  • JW1758A - Offline Step-down LED Driver
  • JW1758B - Offline Step-down LED Driver

Full PDF Text Transcription

Click to expand full text

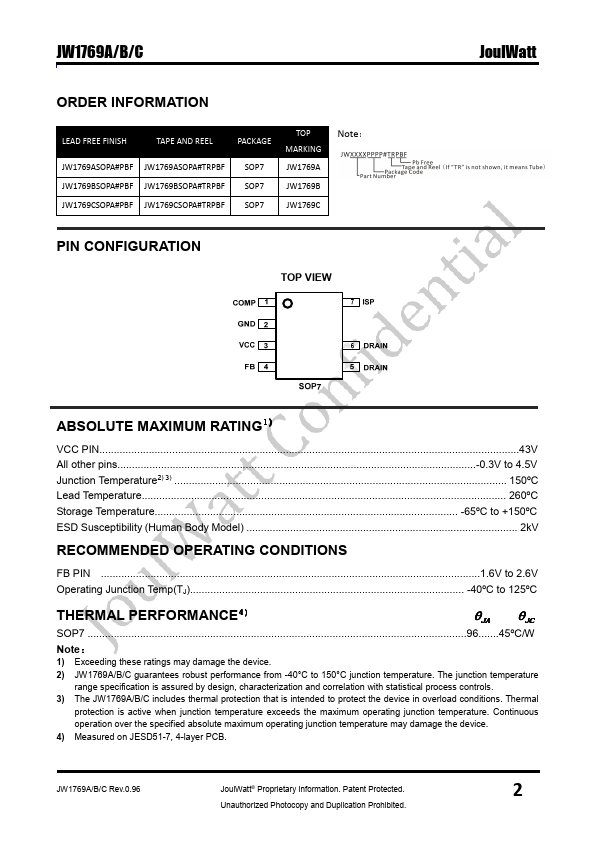

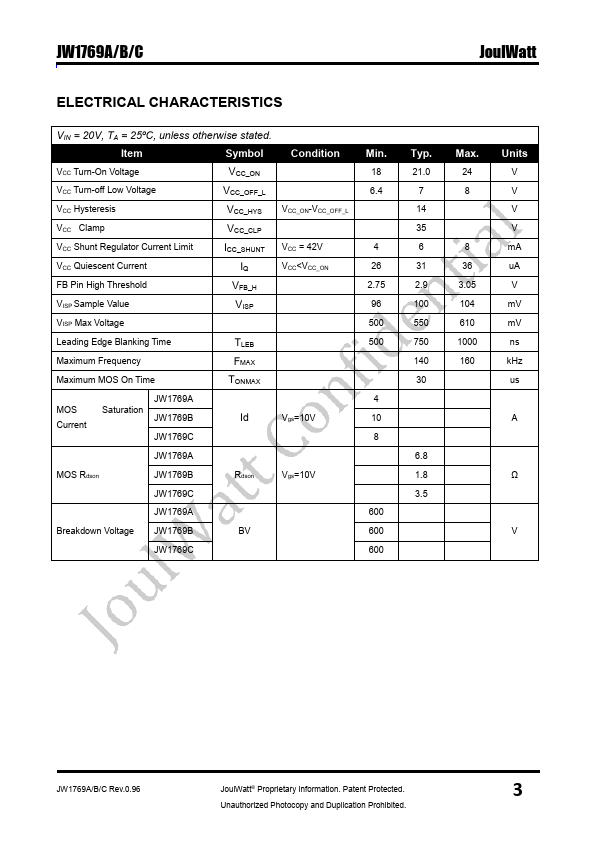

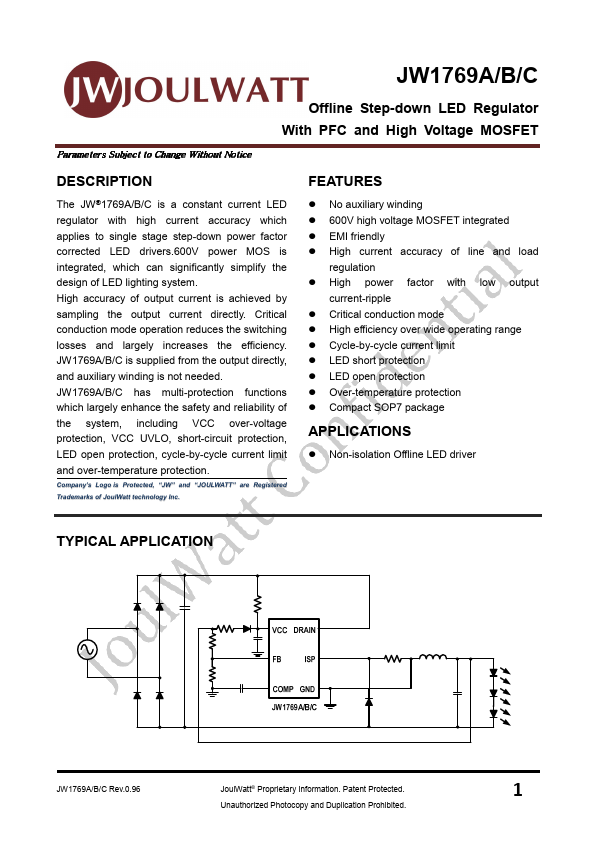

JW1769A/B/C Parameters Subject to Change Without Notice Offline Step-down LED Regulator With PFC and High Voltage MOSFET DESCRIPTION The JW®1769A/B/C is a constant current LED regulator with high current accuracy which applies to single stage step-down power factor corrected LED drivers.600V power MOS is integrated, which can significantly simplify the design of LED lighting system. High accuracy of output current is achieved by sampling the output current directly. Critical conduction mode operation reduces the switching losses and largely increases the efficiency. JW1769A/B/C is supplied from the output directly, and auxiliary winding is not needed.
