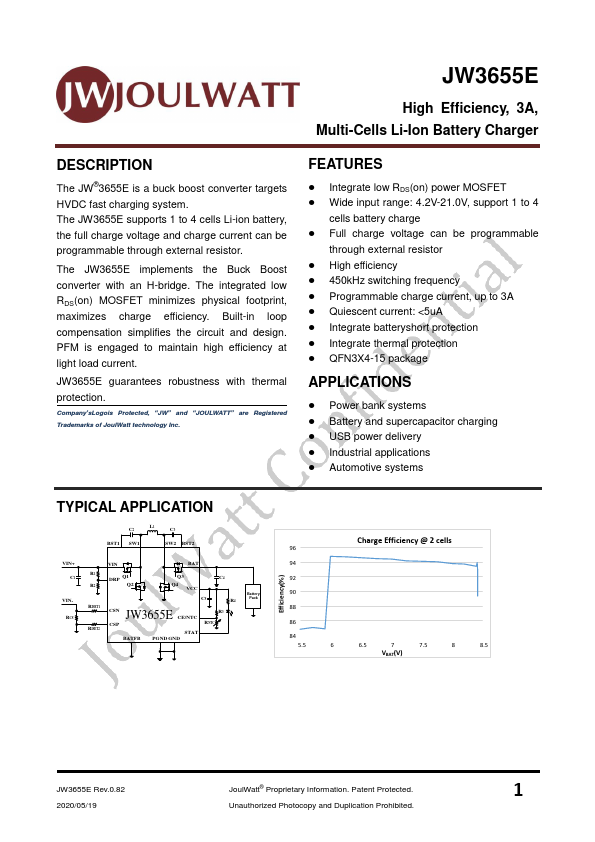

JW3655E Datasheet 3a Multi-cells Li-ion Battery Charger

Manufacturer: JoulWatt

Overview: JW3655E High Efficiency, 3A, Multi-Cells Li-Ion Battery Charger.

Datasheet Details

Part number JW3655E
Manufacturer JoulWatt
File Size 1.09 MB
Description 3A Multi-Cells Li-Ion Battery Charger
Datasheet JW3655E-JoulWatt.pdf

General Description

The JW®3655E is a buck boost converter targets HVDC fast charging system.

The JW3655E supports 1 to 4 cells Li-ion battery, the full charge voltage and charge current can be programmable through external resistor.

The JW3655E implements the Buck Boost converter with an H-bridge.

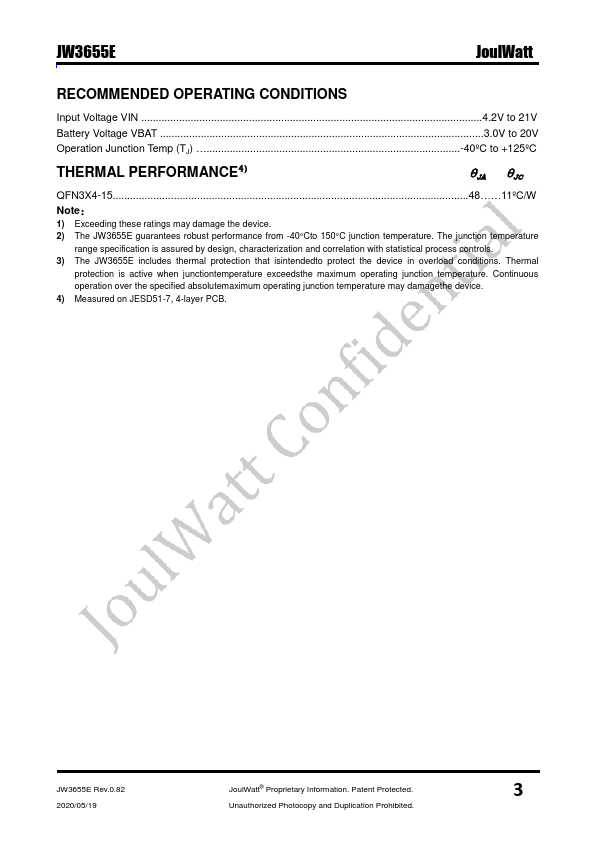

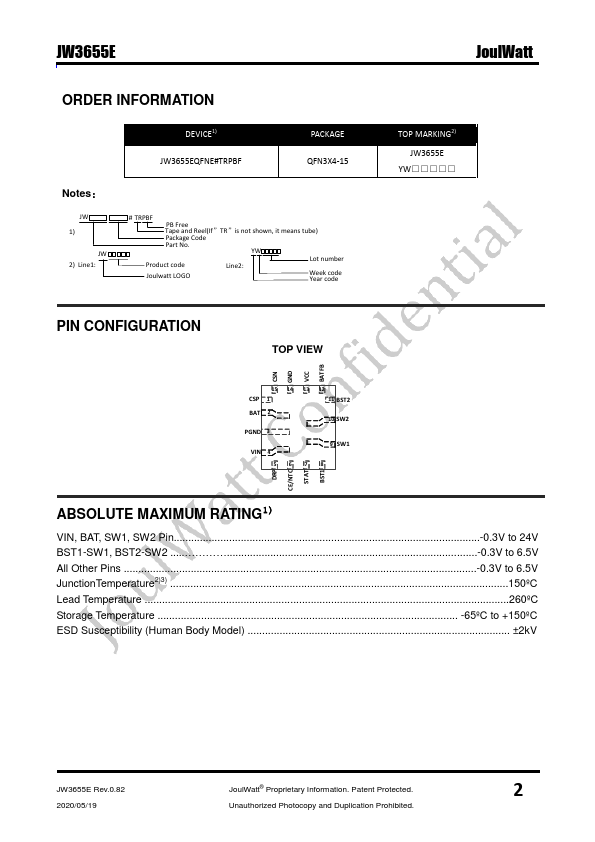

Key Features

  • Integrate low RDS(on) power MOSFET.
  • Wide input range: 4.2V-21.0V, support 1 to 4 cells battery charge.
  • Full charge voltage can be programmable through external resistor.
  • High efficiency.
  • 450kHz switching frequency.
  • Programmable charge current, up to 3A.
  • Quiescent current:.
