JW5033S - 18V/2A Sync. Step-Down Converter

General Description

The JW®5033S is a current mode monolithic buck voltage converter.

Operating with an input range of 3.7V-18V, the JW5033S delivers 2A of continuous output current with two integrated N-Channel MOSFETs.

Key Features

  • 3.7V to 18V operating input range 2A output current Up to 95% efficiency High efficiency at light load 800kHz Switching frequency Input under voltage lockout Start-up current run-away protection Over current protection and Hiccup Thermal protection Available in TSOT23-6 and SOT563 package.

📥 Download Datasheet

Datasheet Details

Part number JW5033S
Manufacturer JoulWatt
File Size 947.75 KB
Description 18V/2A Sync. Step-Down Converter
Datasheet download datasheet JW5033S Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
JW5026 16 Constant Current LED Driver RISETEK

Other Datasheets by JoulWatt

Part Number Description
JW5033T 18V/2A Sync. Step-Down Converter
JW5015 40V Synchronous Rectified Step-Down Converter
JW5015A 2A 40V Synchronous Step-Down Converter
JW5015B 40V Synchronous Step-Down Converter
JW5017S 26V Synchronous Step-Down Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

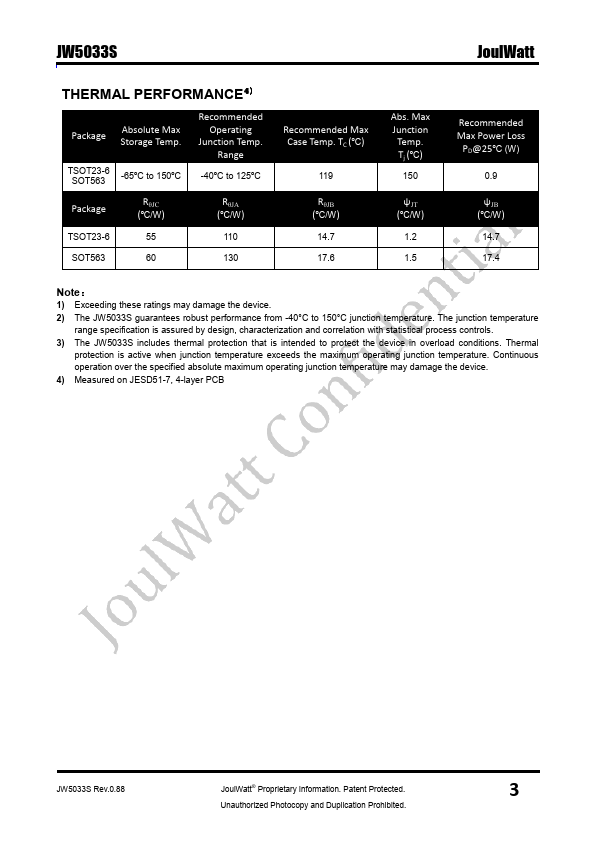

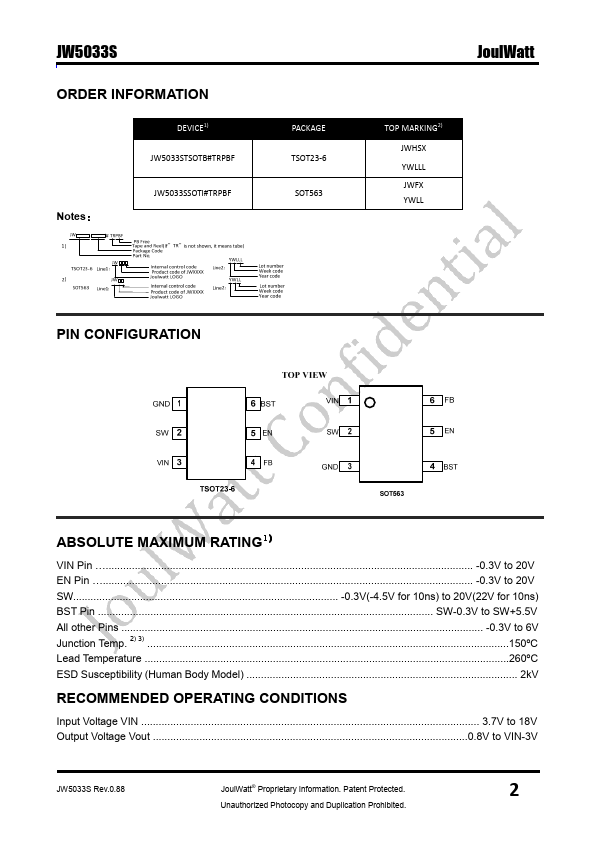

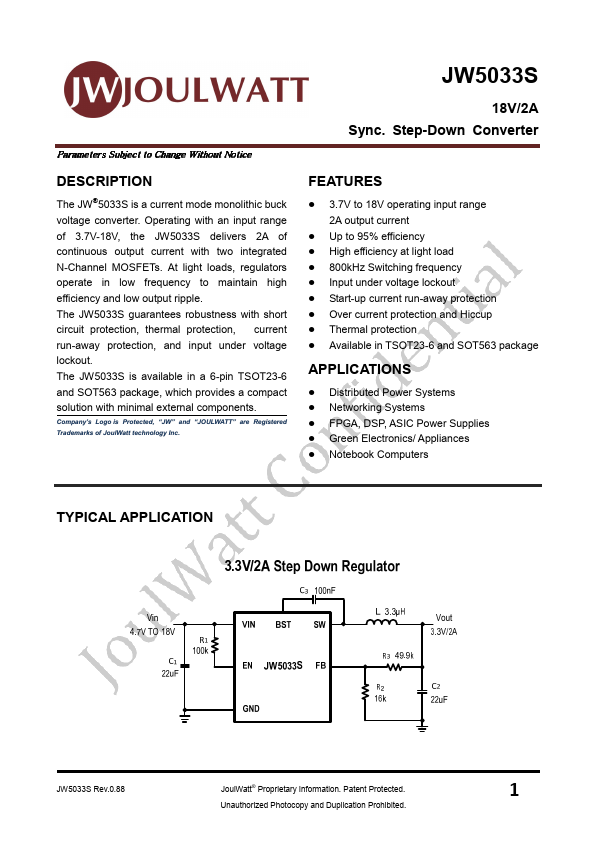

JW5033S Parameters Subject to Change Without Notice 18V/2A Sync. Step-Down Converter DESCRIPTION The JW®5033S is a current mode monolithic buck voltage converter. Operating with an input range of 3.7V-18V, the JW5033S delivers 2A of continuous output current with two integrated N-Channel MOSFETs. At light loads, regulators operate in low frequency to maintain high efficiency and low output ripple. The JW5033S guarantees robustness with short circuit protection, thermal protection, current run-away protection, and input under voltage lockout. The JW5033S is available in a 6-pin TSOT23-6 and SOT563 package, which provides a compact solution with minimal external components. Company’s Logo is Protected, “JW” and “JOULWATT” are Registered Trademarks of JoulWatt technology Inc. FEATURES 3.
