JW5071 - 28V/2A Sync. Step-Down Converter

Description

The JW®5071 is a current mode monolithic buck voltage converter.

Operating with an input range of 4.5V-28V, the JW5071 delivers 2A of continuous output current with two integrated N-Channel MOSFETs.

At light loads, regulators operate in low frequency to maintain high efficiency.

Features

4.5V to 28V operating input range 2A output current.
Up to 93% efficiency.
High efficiency at light load.
600kHz switching frequency.
Input under voltage lockout.
Start-up current run-away protection.
Over current protection and hiccup.
Thermal protection.
Available in SOT23-6 package.

JoulWatt

📥 Download Datasheet

Datasheet Details

Part number	JW5071
Manufacturer	JoulWatt
File Size	1.17 MB
Description	28V/2A Sync. Step-Down Converter
Datasheet	JW5071 Datasheet

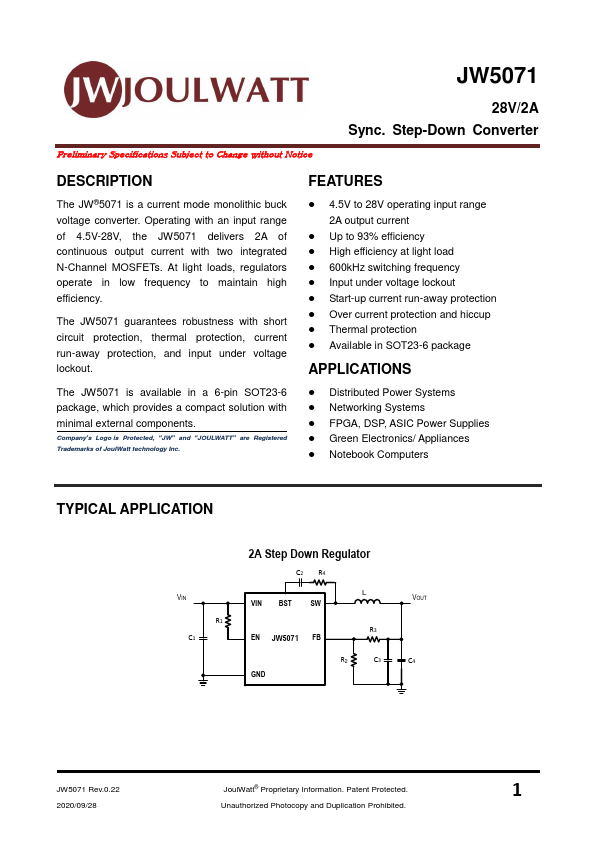

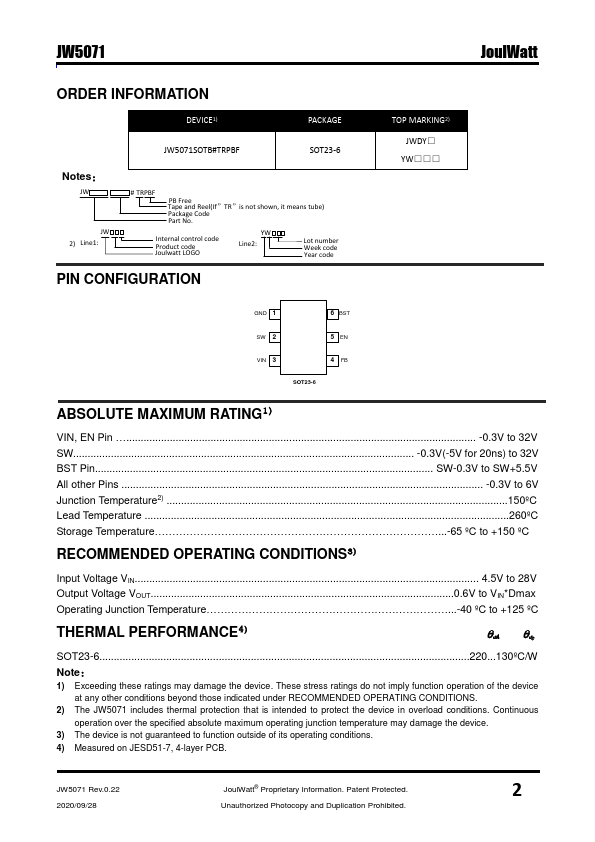

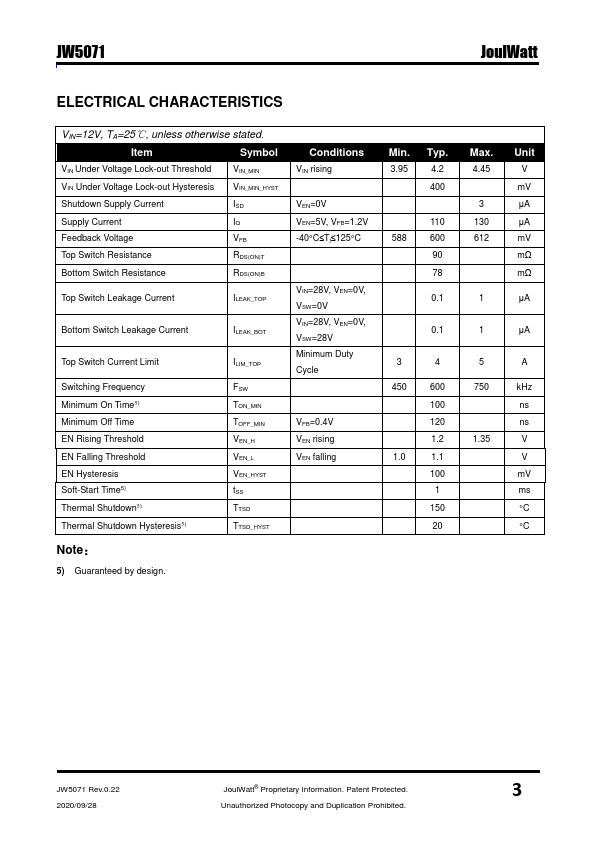

Additional preview pages of the JW5071 datasheet.
