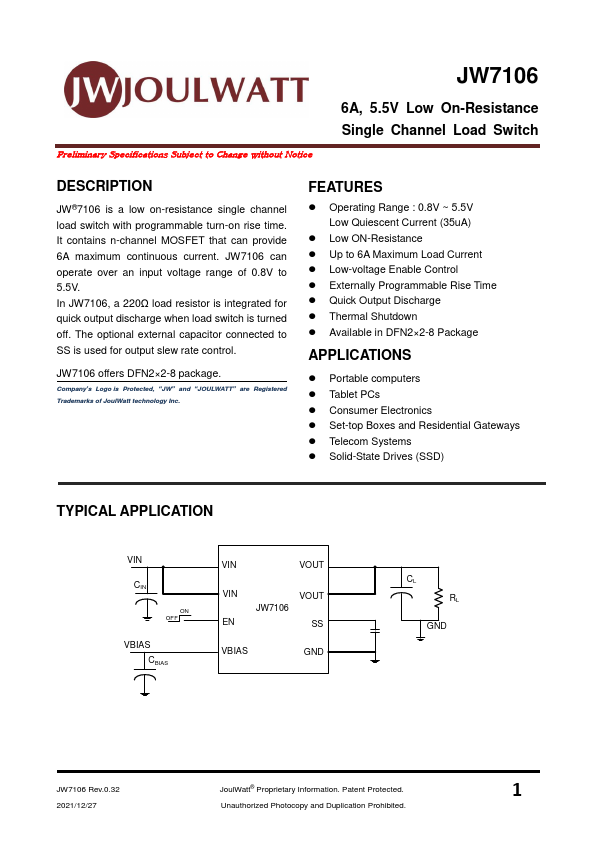

JW7106 - 6A 5.5V Low On-Resistance Single Channel Load Switch

General Description

JW®7106 is a low on-resistance single channel load switch with programmable turn-on rise time.

It contains n-channel MOSFET that can provide 6A maximum continuous current.

JW7106 can operate over an input voltage range of 0.8V to 5.5V.

Key Features

  • Operating Range : 0.8V ~ 5.5V Low Quiescent Current (35uA).
  • Low ON-Resistance.
  • Up to 6A Maximum Load Current.
  • Low-voltage Enable Control.
  • Externally Programmable Rise Time.
  • Quick Output Discharge.
  • Thermal Shutdown.
  • Available in DFN2×2-8 Package.

📥 Download Datasheet

Datasheet Details

Part number JW7106
Manufacturer JoulWatt
File Size 1.35 MB
Description 6A 5.5V Low On-Resistance Single Channel Load Switch
Datasheet download datasheet JW7106 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by JoulWatt

Part Number Description
JW7107S 5.5V Low On-Resistance Dual-Channel Load Switch
JW7111 Single Power Switch
JW7111S Single Power Switch
JW7111SA Single Power Switch
JW7111SAD Single Power Switch

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
Preliminary Specifications Subject to Change without Notice JW7106 6A, 5.5V Low On-Resistance Single Channel Load Switch DESCRIPTION JW®7106 is a low on-resistance single channel load switch with programmable turn-on rise time. It contains n-channel MOSFET that can provide 6A maximum continuous current. JW7106 can operate over an input voltage range of 0.8V to 5.5V. In JW7106, a 220Ω load resistor is integrated for quick output discharge when load switch is turned off. The optional external capacitor connected to SS is used for output slew rate control. JW7106 offers DFN2×2-8 package. Company’s Logo is Protected, “JW” and “JOULWATT” are Registered Trademarks of JoulWatt technology Inc. FEATURES  Operating Range : 0.8V ~ 5.
