General Description

JW®B1981 is a single channel Linear LED driver with 500V MOSFET integrated, and the output current is set by the external resistor.

Patented current control strategy ensures high output current accuracy while the system is simple with few external components and very low BOM cost.

Key Features

800V Bridge Rectifier Integrated.
500V MOSFET Integrated.
High-accuracy output current.
Over temperature protection.
No EMI issues.
Low BOM cost.

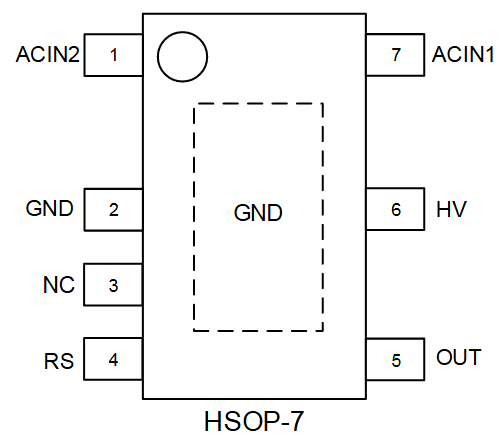

HSOP-7 packages.

📥 Download Datasheet

JWB1981 single-channel linear led driver by JoulWatt - Datasheet Preview

Datasheet Details

Part number	JWB1981
Manufacturer	JoulWatt
File Size	965.56 KB
Description	Single-Channel Linear LED Driver
Datasheet	JWB1981 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer

Other Datasheets by JoulWatt

Part Number	Description
JWB19816	High Efficiency Linear LED Driver
JWB19818	Single-Channel Linear LED Driver
JWB19818L	Single-Channel Linear LED Driver
JWB1992A-C117	Non-isolated Buck LED Driver Regulator
JWB1992B-C117	Non-isolated Buck LED Driver Regulator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

JWB1981 Parameters Subject to Change Without Notice Single-Channel Linear LED Driver DESCRIPTION JW®B1981 is a single channel Linear LED driver with 500V MOSFET integrated, and the output current is set by the external resistor. Patented current control strategy ensures high output current accuracy while the system is simple with few external components and very low BOM cost. JWB1981 provides over temperature protection. When temperature inside chip exceeds OTPCHIP, JWB1981 deceases LED current, which can help chip cooling. Company’s Logo is Protected, “JW” and “JOULWATT” are Registered Trademarks of JoulWatt technology Inc. FEATURES  800V Bridge Rectifier Integrated  500V MOSFET Integrated  High-accuracy output current.  Over temperature protection.  No EMI issues.
