JWH3530 Datasheet ACtive Clamp Pwm Controller

Manufacturer: JoulWatt

Overview: JWH3530 Active Clamp PWM Controller Preliminary Specifications Subject to Change without.

Datasheet Details

Part number JWH3530
Manufacturer JoulWatt
File Size 895.99 KB
Description Active Clamp PWM Controller
Datasheet JWH3530-JoulWatt.pdf

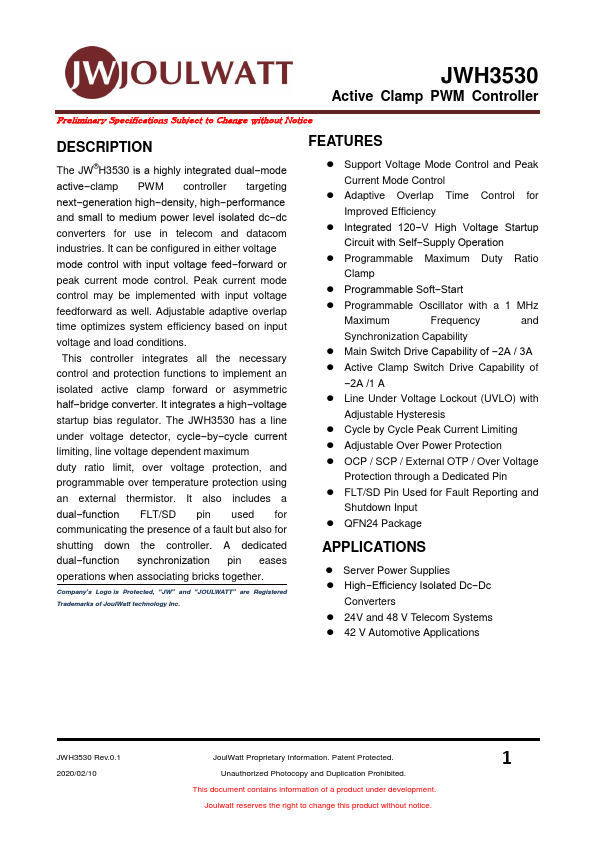

General Description

The JW®H3530 is a highly integrated dual−mode active−clamp PWM controller targeting next−generation high−density, high−performance and small to medium power level isolated dc−dc converters for use in tele and data industries.

It can be configured in either voltage mode control with input voltage feed−forward or peak current mode control.

Peak current mode control may be implemented with input voltage feedforward as well.

Key Features

  • Support Voltage Mode Control and Peak Current Mode Control.
  • Adaptive Overlap Time Control for Improved Efficiency.
  • Integrated 120.
  • V High Voltage Startup Circuit with Self.
  • Supply Operation.
  • Programmable Maximum Duty Ratio Clamp.
  • Programmable Soft.
  • Start.
  • Programmable Oscillator with a 1 MHz Maximum Frequency and Synchronization Capability.
  • Main Switch Drive Capability of.
  • 2A / 3A.
  • Active Clamp Switch Drive Cap.
