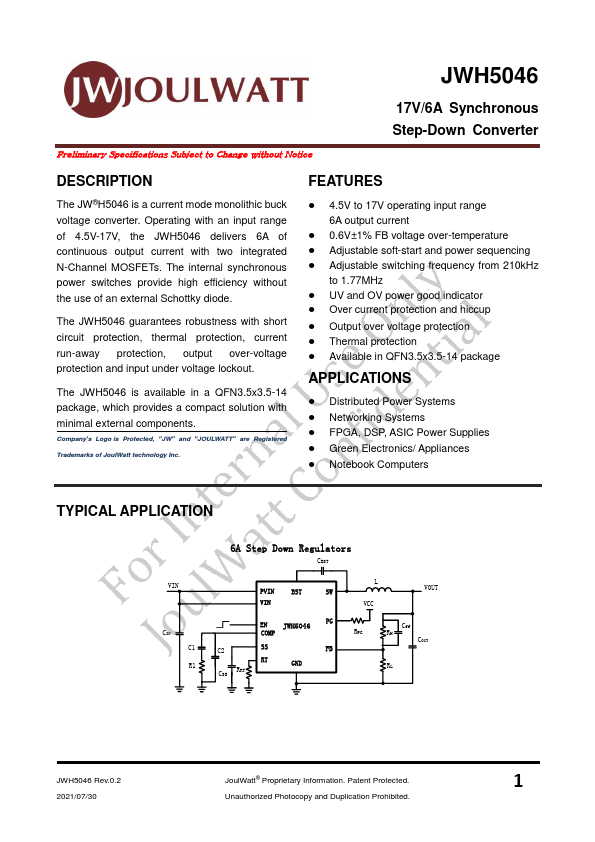

Datasheet Summary
Preliminary Specifications Subject to Change without Notice
17V/6A Synchronous Step-Down Converter
DESCRIPTION
The JW®H5046 is a current mode monolithic buck voltage converter. Operating with an input range of 4.5V-17V, the JWH5046 delivers 6A of continuous output current with two integrated N-Channel MOSFETs. The internal synchronous power switches provide high efficiency without the use of an external Schottky diode.
The JWH5046 guarantees robustness with short circuit protection, thermal protection, current run-away protection, output over-voltage protection and input under voltage lockout.
The JWH5046 is available in a QFN3.5x3.5-14 package, which provides a pact solution...
