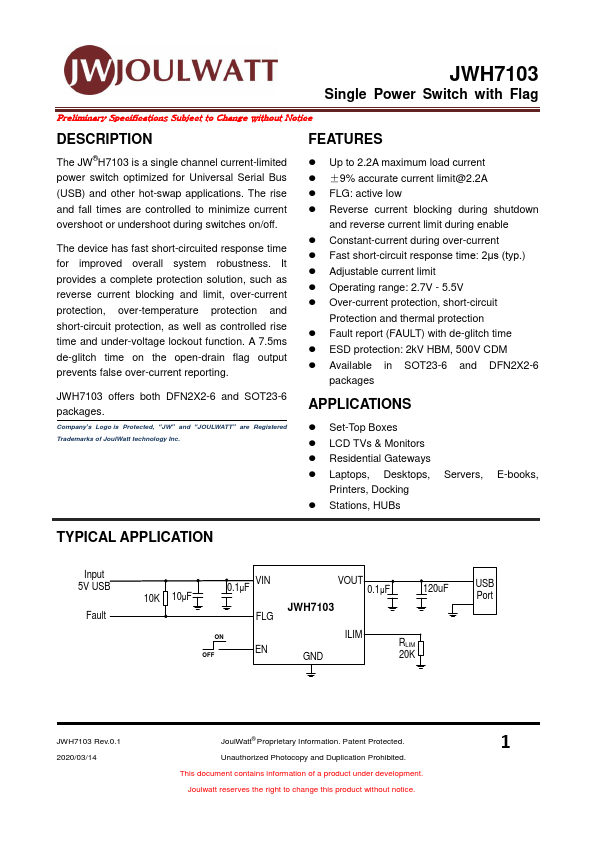

JWH7103 datasheet by JoulWatt.
| Part number | JWH7103 |
|---|---|
| Datasheet | JWH7103-JoulWatt.pdf |
| File Size | 727.05 KB |
| Manufacturer | JoulWatt |
| Description | Single Power Switch |
|
|
FEATURES The JW®H7103 is a single channel current-limited power switch optimized for Universal Serial Bus (USB) and other hot-swap applications. The rise and fall times are controlled to minimize current overshoot or undershoot during switches on/off. The device has fast short-circuited response time for improved overall system robustness.
