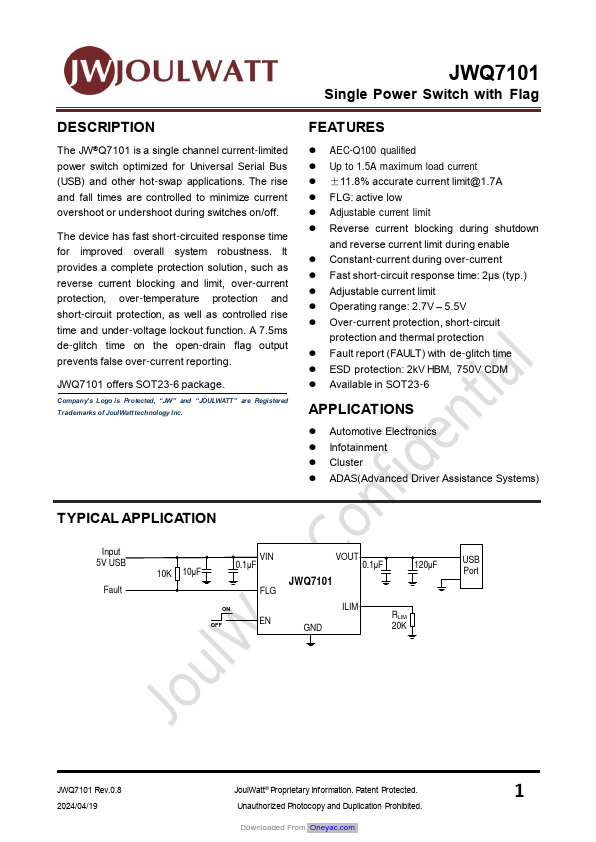

JWQ7101
Single Power Switch with Flag
DESCRIPTION
The JW®Q7101 is a single channel current-limited power switch optimized for Universal Serial Bus (USB) and other hot-swap applications. The rise and fall times are controlled to minimize current overshoot or undershoot during switches on/off.
The device has fast short-circuited response time for improved overall system robustness. It provides a complete protection solution, such as reverse current blocking and limit, over-current protection, over-temperature protection and short-circuit protection, as well as controlled rise time and under-voltage lockout function. A 7.5ms de-glitch time on the open-drain flag output prevents false over-current reporting.

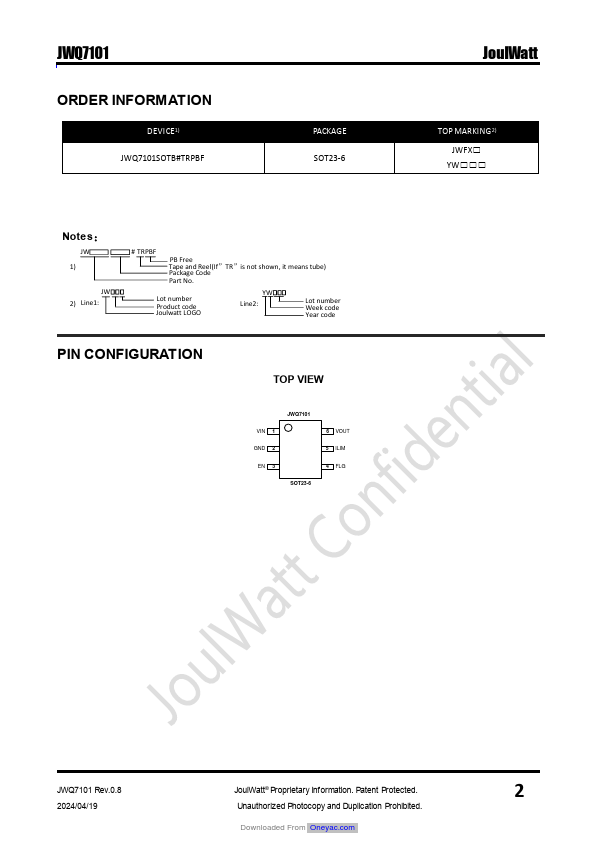

JWQ7101 offers SOT23-6 package.
