KA113 Key Features
- High Gain: 18 dB typical @ 2 GHz
- Low Noise Figure: 1.4 dB typical @ 2 GHz
- High OIP3dB: +38 dBm typical @ 2 GHz
- NASA EEE-INST-002 pliant
- High Reliability Class B and S Screening Available
- See Page 5 for MFR HI -REL Ordering Details
- Part: KA113
- Manufacturer: KCB
- Size: 663.83 KB
Related KCB Datasheets
| Part Number | Description |
|---|---|
| KA115 | Amplifier |
| KA101-01 | 400 - 2700MHz Medium Power Amplifier |
| KA101-10 | 400 - 2700MHz Medium Power Amplifier |
| KA101-54 | 400 - 2700MHz Medium Power Amplifier |
| KA105 | Driver Amplifier |

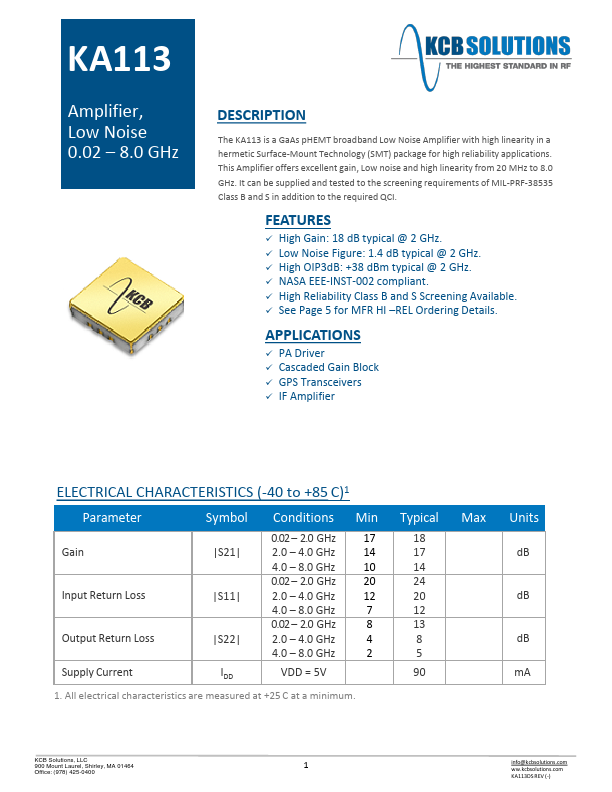

KA113 Description
The KA113 is a GaAs pHEMT broadband Low Noise Amplifier with high linearity in a hermetic Surface-Mount Technology (SMT) package for high reliability applications. This Amplifier offers excellent gain, Low noise and high linearity from 20 MHz to 8.0 GHz. It can be supplied and tested to the screening requirements of MIL-PRF-38535 Class B and S in addition to the required QCI.
