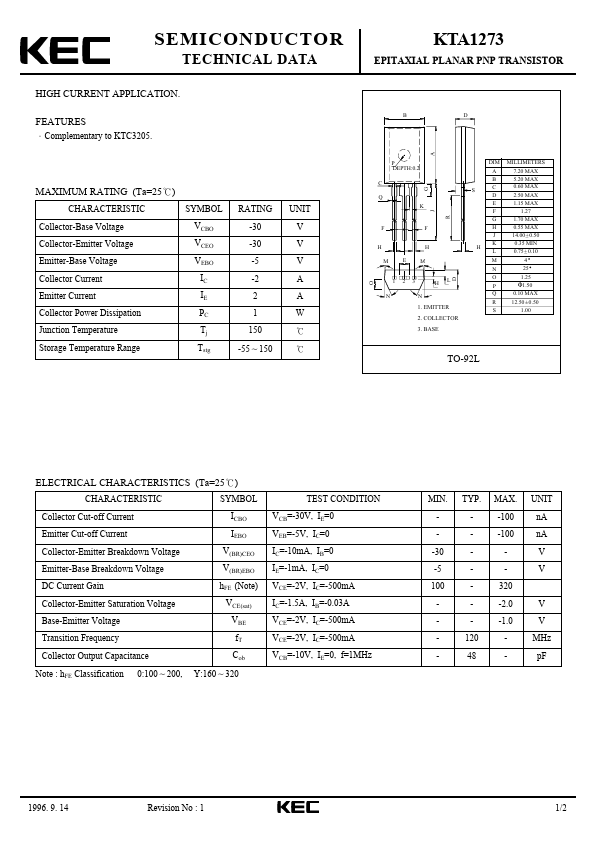

Datasheet Summary
SEMICONDUCTOR
TECHNICAL DATA
HIGH CURRENT APPLICATION.
Features
ᴌplementary to KTC3205.
MAXIMUM RATING (Ta=25ᴱ)
CHARACTERISTIC
SYMBOL
Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Emitter Current Collector Power Dissipation Junction Temperature
VCBO VCEO VEBO
IC IE PC Tj
Storage Temperature Range
Tstg
RATING -30 -30 -5 -2 2 1 150
-55ᴕ150
UNIT V V V A A W ᴱ ᴱ
KTA1273
EPITAXIAL PLANAR PNP TRANSISTOR
P DEPTH:0.2
1. EMITTER
2. COLLECTOR
3. BASE
DIM MILLIMETERS
7.20 MAX
5.20 MAX
0.60 MAX
2.50 MAX
1.15 MAX
1.70 MAX
0.55...
