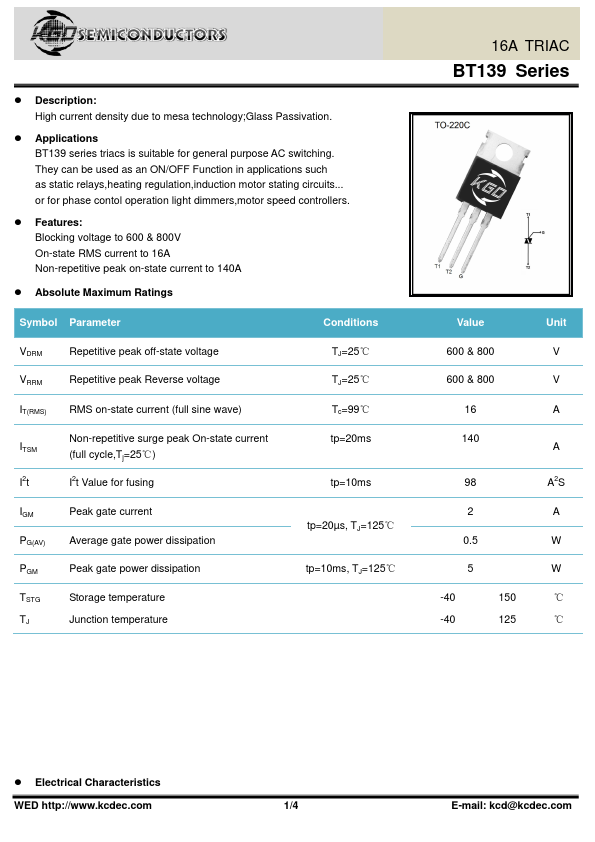

BT139B-600E Description
High current density due to mesa technology;Glass Passivation. Applications BT139 series triacs is suitable for general purpose AC switching. They can be used as an ON/OFF Function in applications such as static relays,heating regulation,induction motor stating circuits...
BT139B-600E Applications
- Features: Blocking voltage to 600 & 800V On-state RMS current to 16A Non-repetitive peak on-state current to 140A
