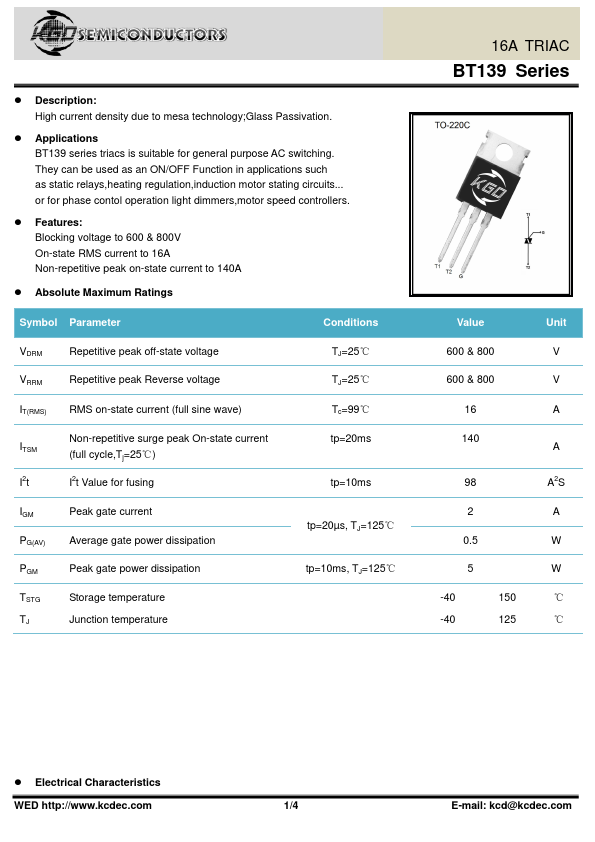

Datasheet Summary
- Description: High current density due to mesa technology;Glass Passivation.
- Applications BT139 series triacs is suitable for general purpose AC switching. They can be used as an ON/OFF Function in applications such as static relays,heating regulation,induction motor stating circuits... or for phase contol operation light dimmers,motor speed controllers.
- Features
: Blocking voltage to 600 & 800V On-state RMS current to 16A Non-repetitive peak on-state current to 140A
-...
