T410
T410 is 3 Quadrants TRIACs manufactured by KGD.

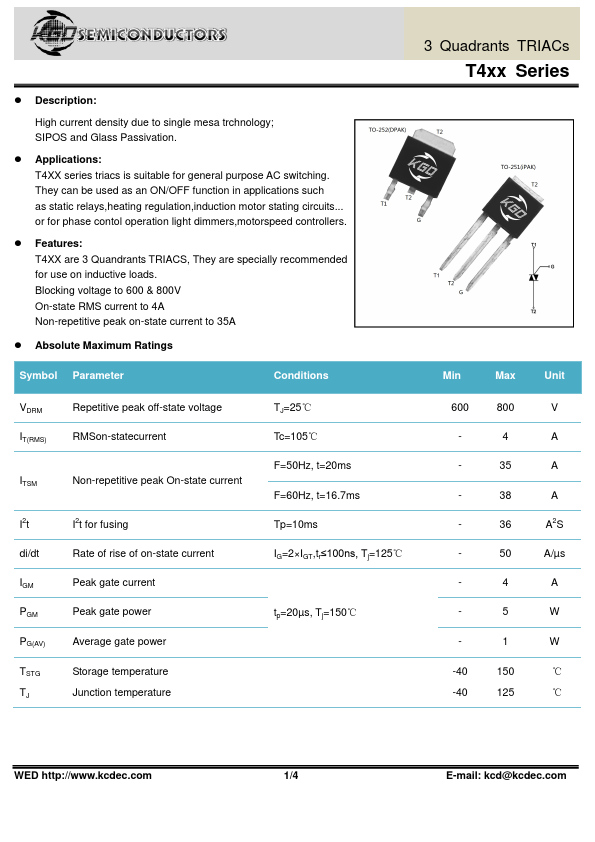

Description
:
High current density due to single mesa trchnology; SIPOS and Glass Passivation.
- Applications: T4XX series triacs is suitable for general purpose AC switching. They can be used as an ON/OFF function in applications such as static relays,heating regulation,induction motor stating circuits... or for phase contol operation light dimmers,motorspeed controllers.
- Features
: T4XX are 3 Quandrants TRIACS, They are specially remended for use on inductive loads. Blocking voltage to 600 & 800V On-state RMS current to 4A Non-repetitive peak on-state current to 35A
- Absolute Maximum Ratings
3 Quadrants TRIACs
T4xx Series
Symbol Parameter
Conditions
Min
Max
Unit
VDRM IT(RMS)
Repetitive peak off-state voltage RMSon-statecurrent
ITSM
Non-repetitive peak On-state current
I2t di/dt IGM PGM PG(AV) TSTG TJ
I2t for fusing Rate of rise of on-state current Peak gate current Peak gate power Average gate power Storage temperature Junction temperature
TJ=25℃ Tc=105℃ F=50Hz, t=20ms F=60Hz, t=16.7ms Tp=10ms IG=2×IGT,tr≤100ns, Tj=125℃ tp=20µs, Tj=150℃
- 4
- 35
- 38
- 36
A2S
- 50
A/µs
- 4
- 5
-...
