Datasheet Summary

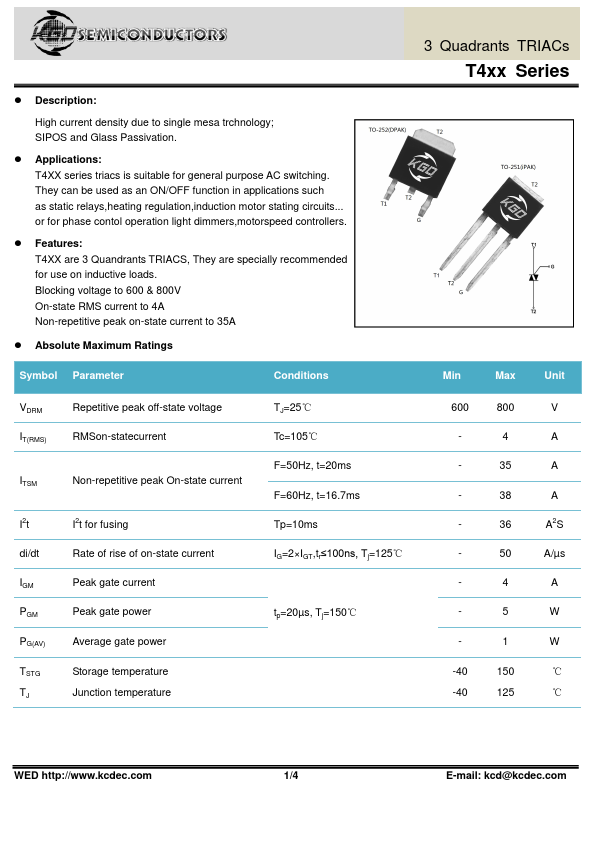

- Description:
High current density due to single mesa trchnology; SIPOS and Glass Passivation.
- Applications: T4XX series triacs is suitable for general purpose AC switching. They can be used as an ON/OFF function in applications such as static relays,heating regulation,induction motor stating circuits... or for phase contol operation light dimmers,motorspeed controllers.
- Features
: T4XX are 3 Quandrants TRIACS, They are specially remended for use on inductive loads. Blocking voltage to 600 & 800V On-state RMS current to 4A Non-repetitive peak on-state current to 35A
-...
