KGD T850
3 Quadrants TRIACs
| Part No. | T850 |
|---|---|
| Datasheet | T850 Download |
| Manufacturer |  KGD |
| Description | 3 Quadrants TRIACs |
| Buy | Stock & Price |

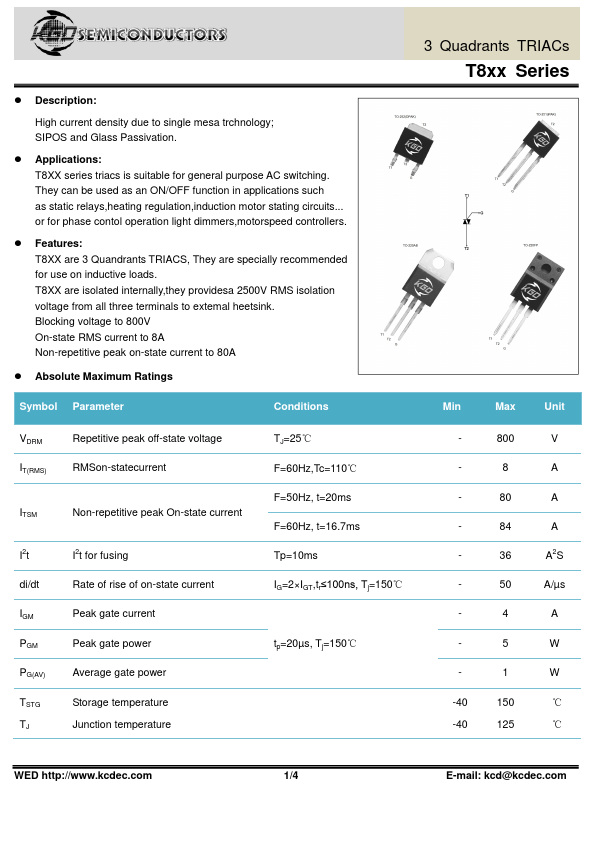

DESCRIPTION
: High current density due to single mesa trchnology; SIPOS and Glass Passivation.●
APPLICATIONS
: T8XX series triacs is suitable for general purpose AC switching. They can be used as an ON/OFF function in applications such as static relays,heating regulation,induction motor stating circuits... or for phase contol operation light dimmers,motorspeed controllers.●
FEATURES
: T8XX are 3 Quandrants TRIACS, They are specially recommended for use on inductive loads. T8XX are isolated internally,they providesa 2500V RMS isolation voltage from all three terminals to extemal heetsink. Blocking voltage to 800V On-state RMS current to 8A Non-repetitive peak on-state current to 80A●
ABSOLUTE MAXIMUM RATINGS
3 Quadrants TRIACs T8xx Series Symbol Parameter Conditions Min Max Unit VDRM IT(RMS) Repetitive peak off-state voltage RMSon-statecurrent ITSM Non-repetitive peak On-state current I2t di/dt IGM PGM PG(AV) TSTG TJ I2t for fusing Rate of rise of on-state current Peak gate current Peak...
