KINGWELL K12-V
AUTOMOTIVE SCHOTTKY BARRIER RECTIFIER
| Part No. | K12-V |
|---|---|
| Datasheet | K12-V Download |
| Manufacturer | KINGWELL |
| Description | AUTOMOTIVE SCHOTTKY BARRIER RECTIFIER |
| Buy | Stock & Price |
FEATURES
Plastic package has Underwriters Laboratory Flammability Classification 94V-0 Metal silicon junction ,majority carrier conduction Guard ring for overvoltage protection Low power loss ,high efficiency High current capability ,Low forward voltage drop High surge capability For use in low voltage ,high frequency inverters, free wheeling ,and polarity protection applications High temperature soldering guaranteed:260 °C/10 seconds at terminals, 0.375"(9.5mm)lead length,5lbs.(2.3kg)tension AEC-Q101 qualified and PPAP capableMECHANICAL DATA
Case: SOD-123FL molded plastic body Lead Finish: 100% Matte Sn (Tin) Polarity: color band denotes cathode end Mounting Position: Any Weight: 11.7 mg(approximately) IATF16949认 证 SOD-123FLMAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

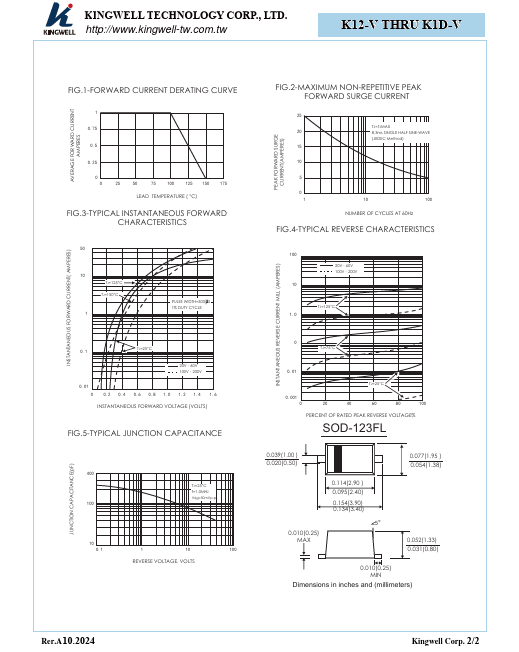

(Ratings at 25°C ambient temperature unless otherwise specified ,Single phase ,half wave ,resistive or inductive load. For capacitive load,derate by 20%.) Parameter Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current (See Fig.
