KLS12-140-8P8C Datasheet | KLS

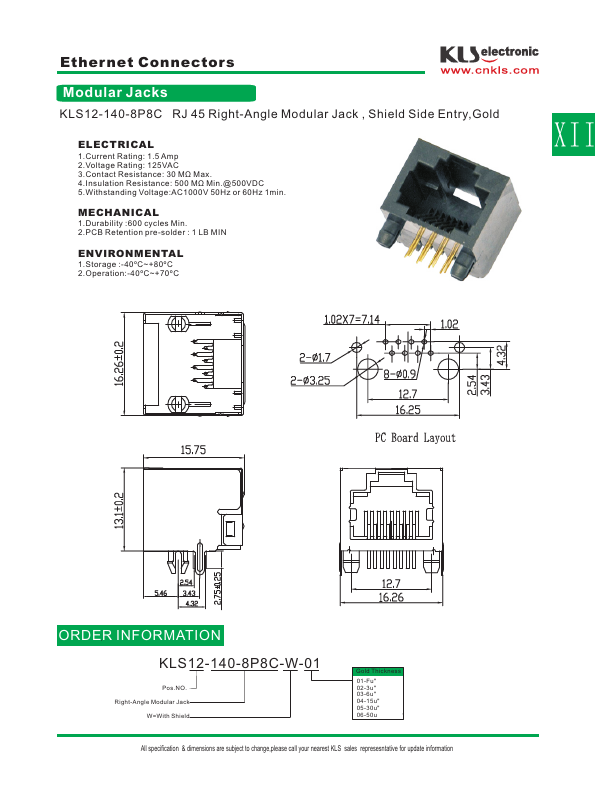

Ethernet Connectors Modular Jacks KLS12-140-8P8C RJ 45 Right-Angle Modular Jack , Shield Side Entry,Gold ELECTRICAL 1.Current Rating: 1.5 Amp 2.Voltage Rating: 125VAC 3.Contact Resistance: 30 MΩ Max. 4.Insulation Resistance: 500 MΩ Min.@500VDC 5.Withstanding Voltage:AC1000V 50Hz or 60Hz 1min. MECHANICAL 1.Durability :600 cycles Min. 2.PCB Retention pre-solder : 1 LB MIN ENVIRONMENTAL 1.Storage :-40ºC~+80ºC 2.Operation:-40ºC~+70ºC ORDER INFORMATION KLS12-140-8P8C-W-01 Pos.NO. Right-Angle Modular Jack W=With Shield Gold Thickness 01-Fu" 02-3u" 03-6u" 04-15u" 05-30u" 06-50u All specification & dimensions are subject to change,please call your nearest KLS sales represesntative for update...
