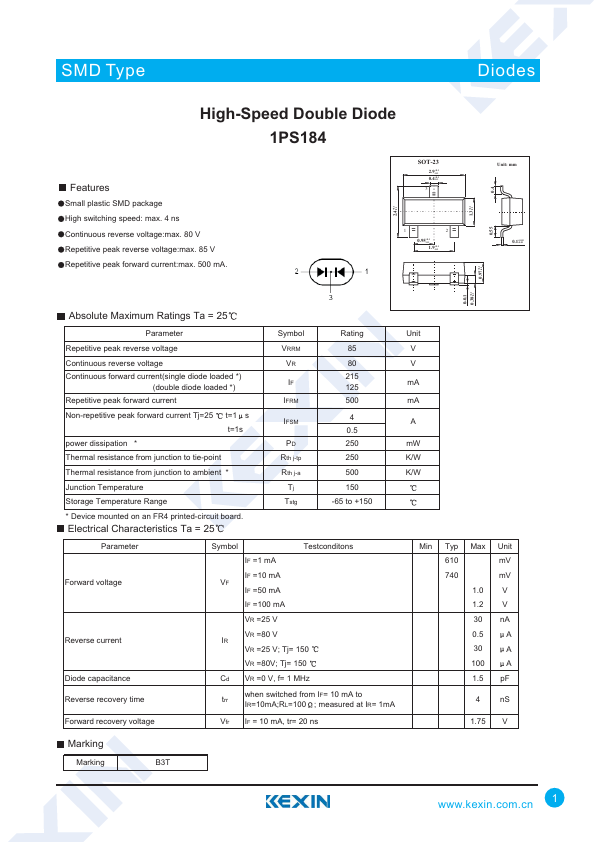

1PS184
1PS184 is High-Speed Double Diode manufactured by Kexin Semiconductor.
Features
Small plastic SMD package High switching speed: max. 4 ns Continuous reverse voltage:max. 80 V Repetitive peak reverse voltage:max. 85 V Repetitive peak forward current:max. 500 m A.
+0.1 2.4 -0.1
SOT-23
2.9+0.1 -0.1
0.4+0.1 -0.1
0.95+0.1 -0.1 1.9+0.1 -0.1
+0.1 1.3 -0.1
Unit: mm 0.1+0.05
-0.01
+0.1 0.97 -0.1
Absolute Maximum Ratings Ta = 25
0-0.1 +0.1 0.38
-0.1
1.Base 2.Emitter 3.collector
Parameter
Symbol
Rating
Unit
Repetitive peak reverse voltage
VRRM
Continuous reverse voltage
Continuous forward current(single diode loaded
- ) ---------------------------------(double diode loaded
- )
215 125 m A
Repetitive peak forward current
IFRM
500 m A
Non-repetitive peak forward current Tj=25 t=1 s IFSM
A...
