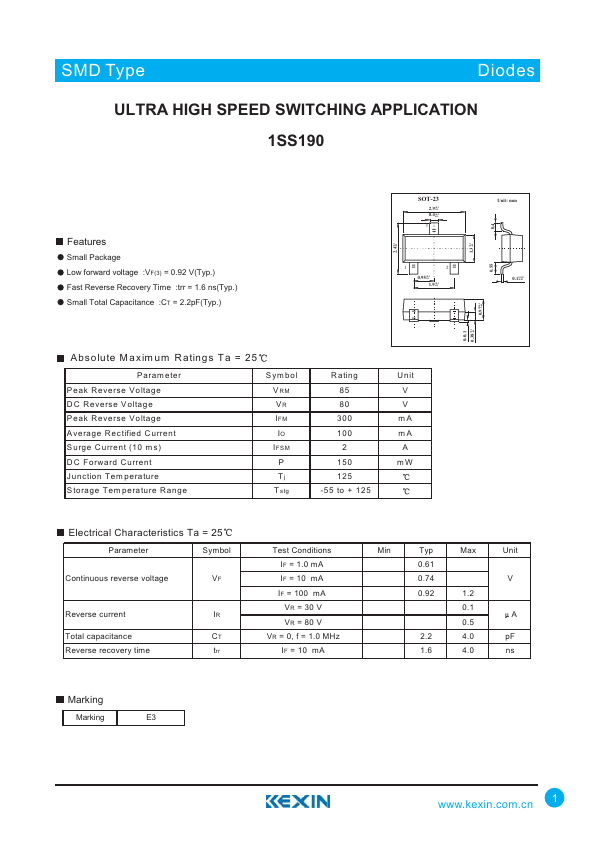

1SS190 Datasheet | Kexin Semiconductor

Features Small Package Low forward voltage :VF(3) = 0.92 V(Typ.) Fast Reverse Recovery Time :trr = 1.6 ns(Typ.) Small Total Capacitance :CT = 2.2p F(Typ.) +0.1 2.4 -0.1 SOT-23 2.9+0.1 -0.1 0.4+0.1 -0.1 0.95+0.1 -0.1 1.9+0.1 -0.1 Absolute M axim um Ratings Ta = 25 Param eter Peak Reverse Voltage DC Reverse Voltage Peak Reverse Voltage Average Rectified Current Surge Current (10 m s) DC Forward Current Junction Tem perature Storage Tem perature Range Sym bol VRM VR IFM IO IFSM P Tj T stg R a tin g 85 80 300 100 2 150 125 -55 to + 125 U n it V V m A m A A m W 0-0.1 +0.1 0.38 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 Unit: mm 0.1+0.05 -0.01 1.Base 2.Emitter 3.collector Electrical Characteristics Ta = 25 Parameter Symbol Continuous reverse voltage Reverse current Total capacitance Reverse recovery time trr Test Conditions IF = 1.0 m A IF = 10 m A IF = 100 m A VR = 30 V VR = 80 V VR = 0, f = 1.0 MHz IF = 10 m...
