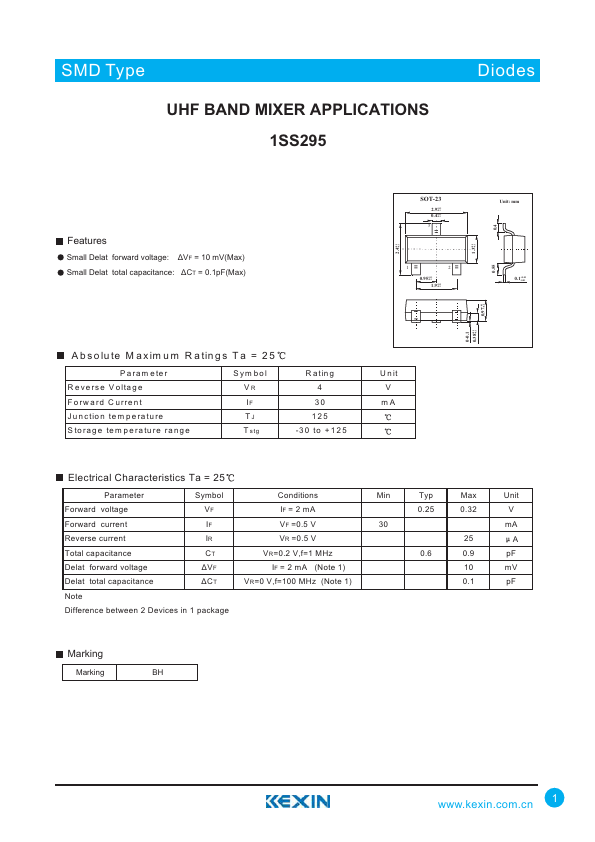

1SS295
Features
Small Delat forward voltage: ÄVF = 10 m V(Max) Small Delat total capacitance: ÄCT = 0.1p F(Max)
+0.1 2.4 -0.1
SOT-23
2.9+0.1 -0.1
0.4+0.1 -0.1
0.95+0.1 -0.1 1.9+0.1 -0.1
A bsolute M axim um R atings T a = 25
P aram eter R everse V oltage Forw ard C urrent Junction tem perature S torage tem perature range
Sym bol VR IF TJ T stg
R ating 4 30
125 -30 to +125
U nit V m A
0-0.1 +0.1 0.38
-0.1
+0.1 1.3 -0.1
+0.1 0.97 -0.1
Unit: mm
0.1+0.05 -0.01
1.Base 2.Emitter 3.collector
Electrical Characteristics Ta = 25
Parameter
Symbol
Conditions
Min
Typ
Max
Unit
Forward voltage
IF = 2 m A
Forward current
VF =0.5...
