APPLICATIONS
1SS314 FEATURES

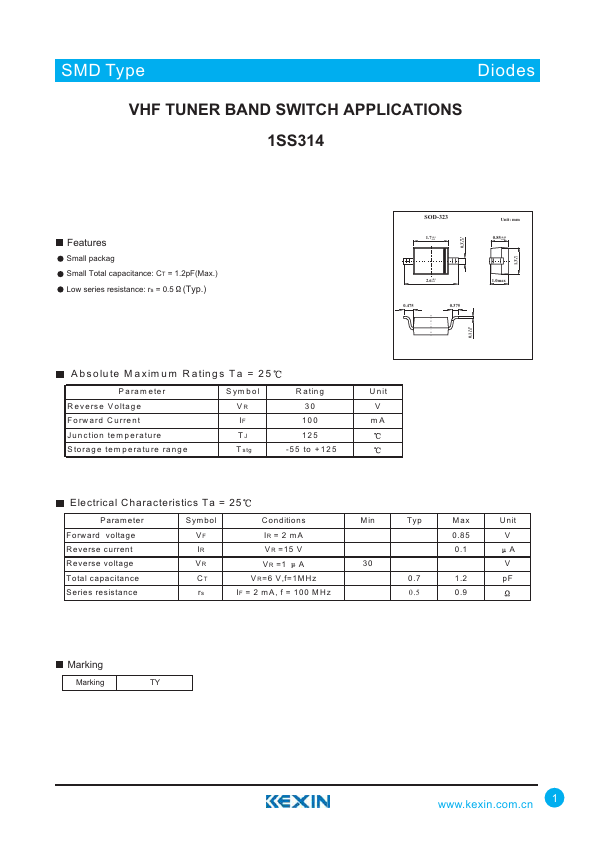

Small packag Small Total capacitance: CT = 1.2pF(Max.) Low series resistance: rs = 0.5 (Typ.) SOD-323 1.7+0.1 -0.1 Unit: mm 0.85+0.05 -0.05 +0.05 0.3 -0.05 +0.1 1.3 -0.1 2.6+0.1 -0.1 0.475 0.375 1.0max +0.05 0.1 -0.02 A bsolute M axim um R atings T a = 25 P aram eter R everse V oltage Forward C urrent Junction tem perature S torage tem perature range Sym bol VR IF TJ T stg R ating 30 100 125 -55 to +125 U nit V mA ELECTRICAL CHARACTERISTICS
Ta = 25 P aram eter Forward voltage Reverse current Reverse voltage Total capacitance Series resistance S ym bol C o n d itio n s M in Typ Max U n it VF IR = 2 m A 0.85 V IR VR =15 V 0.1 A VR VR =1 A 30 V CT VR=6 V,f=1MHz 0.7 1.2 pF rs IF = 2 mA, f = 100 MHz 0.5 0.9 Marking Marking TY 1
