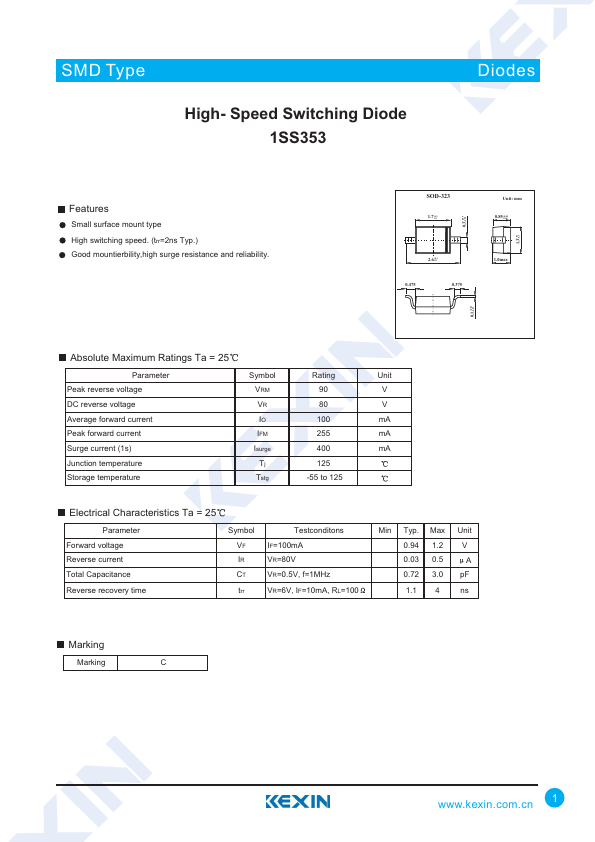

1SS353
1SS353 is High-Speed Switching Diode manufactured by Kexin Semiconductor.
Features
Small surface mount type High switching speed. (trr=2ns Typ.) Good mountierbility,high surge resistance and reliability.
SOD-323
1.7+0.1 -0.1
Unit: mm 0.85+0.05
-0.05
+0.05 0.3 -0.05
+0.1 1.3 -0.1
2.6+0.1 -0.1
1.0max
+0.05 0.1 -0.02
Absolute Maximum Ratings Ta = 25
Parameter Peak reverse voltage DC reverse voltage Average forward current Peak forward current Surge current (1s) Junction temperature Storage temperature
Symbol
Rating
Unit
100 m A
255 m A
Isurge
400 m A
Tj
Tstg
-55 to 125
Electrical Characteristics Ta = 25
Parameter Forward voltage Reverse current Total Capacitance Reverse recovery time
Symbol VF IR CT trr
Testconditons IF=100m A VR=80V VR=0.5V, f=1MHz VR=6V, IF=10m A, RL=100
Min Typ. Max Unit
0.94 1.2 V
0.03 0.5
0.72 3.0 p F
1.1 4...
