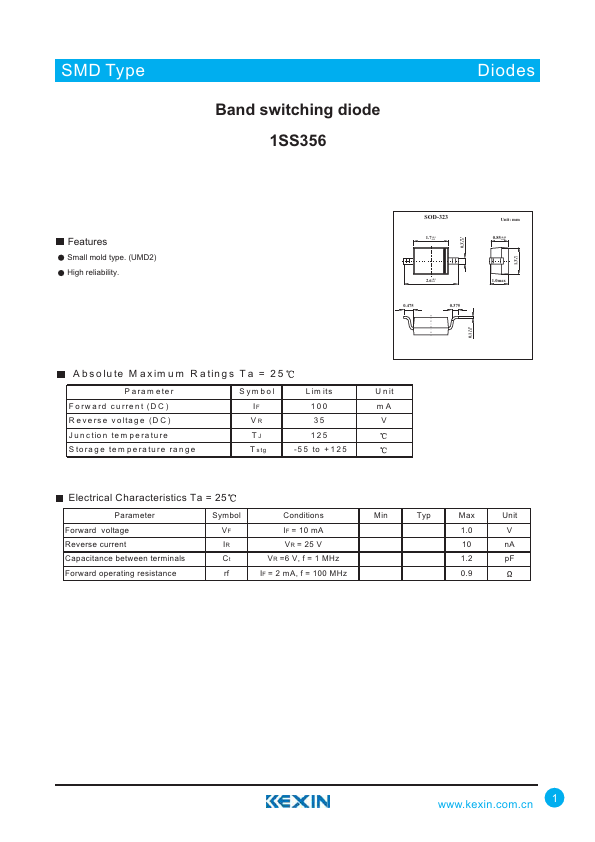

FEATURES
Small mold type. (UMD2) High reliability. SOD-323 1.7+0.1 -0.1 Unit: mm 0.85+0.05 -0.05 +0.05 0.3 -0.05 +0.1 1.3 -0.1 2.6+0.1 -0.1 0.475 0.375 1.0max +0.05 0.1 -0.02 A b so lu te M a xim u m R a tin g s T a = 2 5 P aram eter Forw ard current (D C ) R e ve rse vo lta g e (D C ) Ju n ctio n te m p e ra tu re S torage tem perature range Sym bol IF VR TJ T stg L im its 100 35 125 -55 to + 125 U n it mA V ELECTRICAL CHARACTERISTICS
Ta = 25 Parameter Symbol Conditions Min Typ Max Unit Forward voltage VF IF = 10 mA 1.0 V Reverse current IR VR = 25 V 10 nA Capacitance between terminals Ct VR =6 V, f = 1 MHz 1.2 pF Forward operating resistance rf IF = 2 mA, f = 100 MHz 0.9 1
