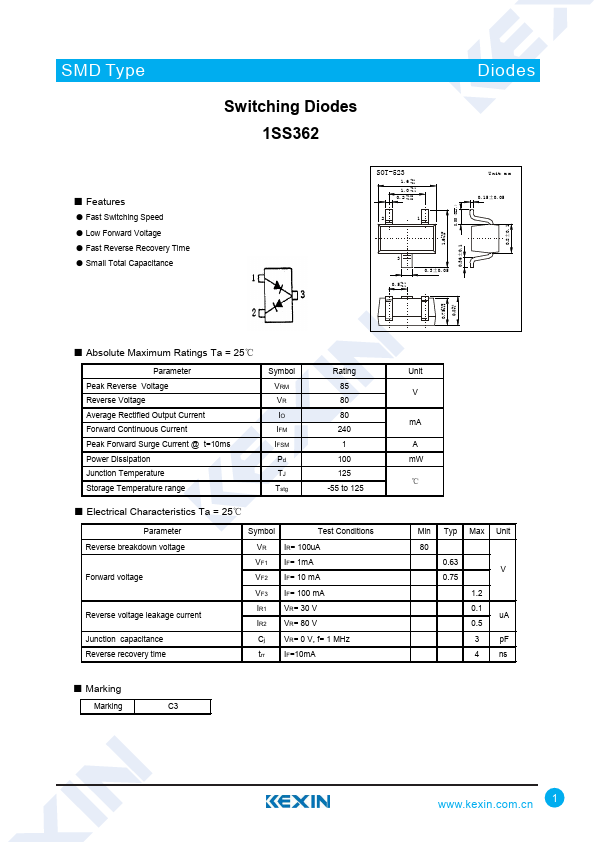

1SS362
Features
- Fast Switching Speed
- Low Forward Voltage
- Fast Reverse Recovery Time
- Small Total Capacitance
Switching Diodes 1SS362
SOT-523
1.6 +0.1 -0.1
1.0 +0.1 -0.1
0.2 +0.05 -0.05
Diodes
U nit: m m 0.15±0.05
0.55 (REF.)
0.8±0.1
+0.15 1.6 -0.15
0.36±0.1
3 0.5 +0.1
-0.1
0.3±0.05
+0.05 0.75 -0.05 +0.1 0.8 -0.1
- Absolute Maximum Ratings Ta = 25℃
Parameter Peak Reverse Voltage Reverse Voltage Average Rectified Output Current Forward Continuous Current Peak Forward Surge Current @ t=10ms Power Dissipation Junction Temperature Storage Temperature range
Symbol VRM VR IO IFM IFSM Pd TJ Tstg
Rating 85 80 80 240 1 100 125
-55 to 125
- Electrical Characteristics Ta = 25℃
Parameter Reverse breakdown voltage
Forward voltage
Reverse voltage leakage current Junction capacitance Reverse recovery time
Symbol
Test Conditions
VR IR= 100u A
VF1 IF= 1m A
VF2 IF= 10 m A
VF3 IF= 100 m A
IR1 VR= 30 V
IR2 VR= 80 V
Cj VR= 0 V, f= 1 MHz...
