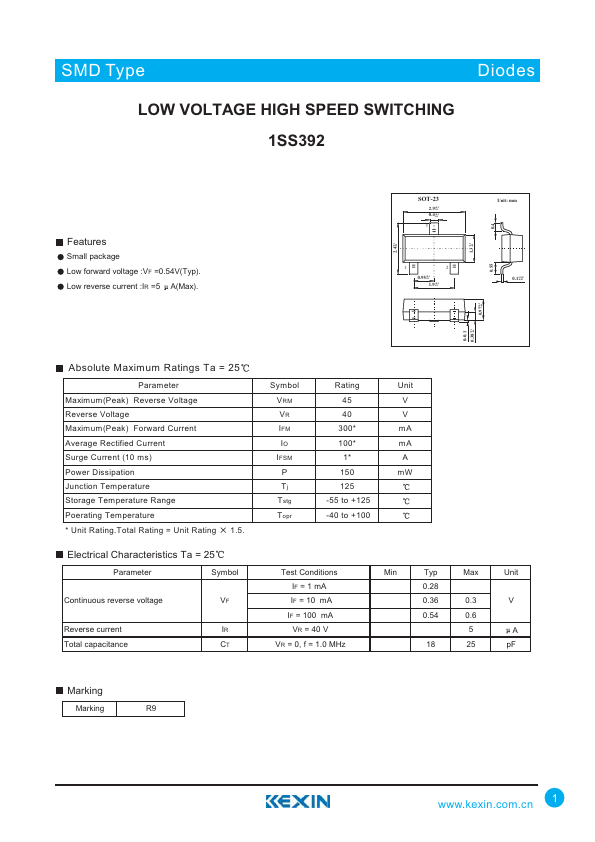

1SS392 Datasheet PDF

FEATURES

Small package Low forward voltage :VF =0.54V(Typ). Low reverse current :IR =5 A(Max). +0.1 2.4 -0.1 SOT-23 2.9+0.1 -0.1 0.4+0.1 -0.1 3 1 2 0.95+0.1 -0.1 1.9+0.1 -0.1 +0.1 1.3 -0.1 0.55 0.4 Unit: mm 0.1+0.05 -0.01 +0.1 0.97 -0.1

ABSOLUTE MAXIMUM RATINGS

Ta = 25 Parameter Maximum(Peak) Reverse Voltage Reverse Voltage Maximum(Peak) Forward Current Average Rectified Current Surge Current (10 ms) Power Dissipation Junction Temperature Storage Temperature Range Poerating Temperature * Unit Rating.Total Rating = Unit Rating 1.5.

ELECTRICAL CHARACTERISTICS

Ta = 25 Parameter Symbol Continuous reverse voltage VF Reverse current IR Total capacitance CT Symbol VRM VR IFM IO IFSM P Tj Tstg Topr Rating 45 40 300* 100* 1* 150 125 -55 to +125 -40 to +100 Unit V V mA mA A mW Test Conditions IF = 1 mA IF = 10 mA IF = 100 mA VR = 40 V VR = 0, f = 1.0 MHz Min Typ 0.28 0.36 0.54 18 0-0.1 +0.1 0.38 -0.1 1.Base 2.Emitter 3.collector Max Unit 0.3 V 0.6 5 A 25 pF Marking Marking R9 1
