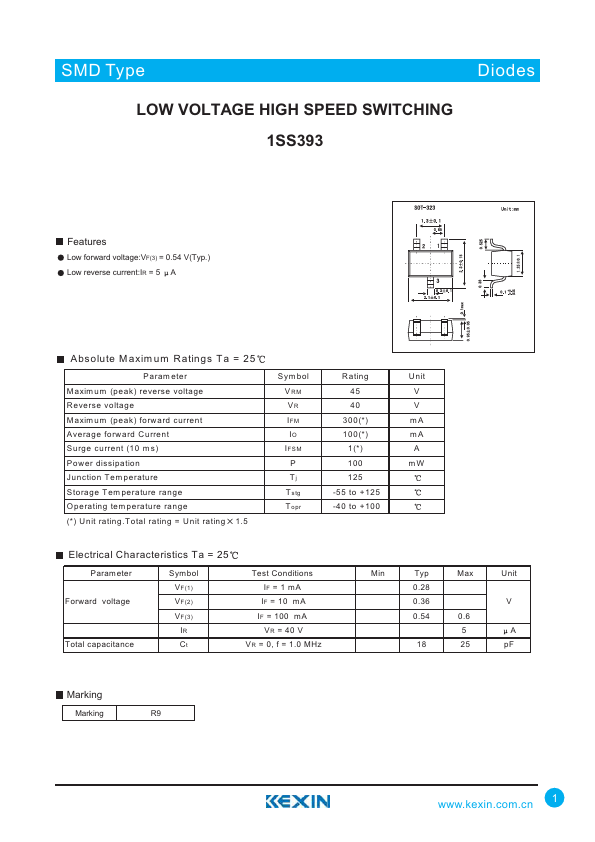

1SS393 Datasheet PDF

FEATURES

Low forward voltage:VF(3) = 0.54 V(Typ.) Low reverse current:IR = 5 A Absolute M axim um Ratings Ta = 25 Param eter Maxim um (peak) reverse voltage Reverse voltage Maxim um (peak) forward current Average forward Current Surge current (10 m s) Power dissipation Junction Tem perature Storage Tem perature range Operating tem perature range (*) Unit rating.Total rating = Unit rating 1.5 Sym bol VRM VR IFM IO IFSM P Tj T stg Topr R a tin g 45 40 300(*) 100(*) 1(*) 100 125 -55 to +125 -40 to +100 U n it V V mA mA A mW

ELECTRICAL CHARACTERISTICS

Ta = 25 P aram eter Forward voltage Total capacitance Symbol VF(1) VF(2) VF(3) IR Ct Test Conditions IF = 1 mA IF = 10 mA IF = 100 mA VR = 40 V VR = 0, f = 1.0 MHz Min Typ Max Unit 0.28 0.36 V 0.54 0.6 5 A 18 25 pF Marking Marking R9 1
