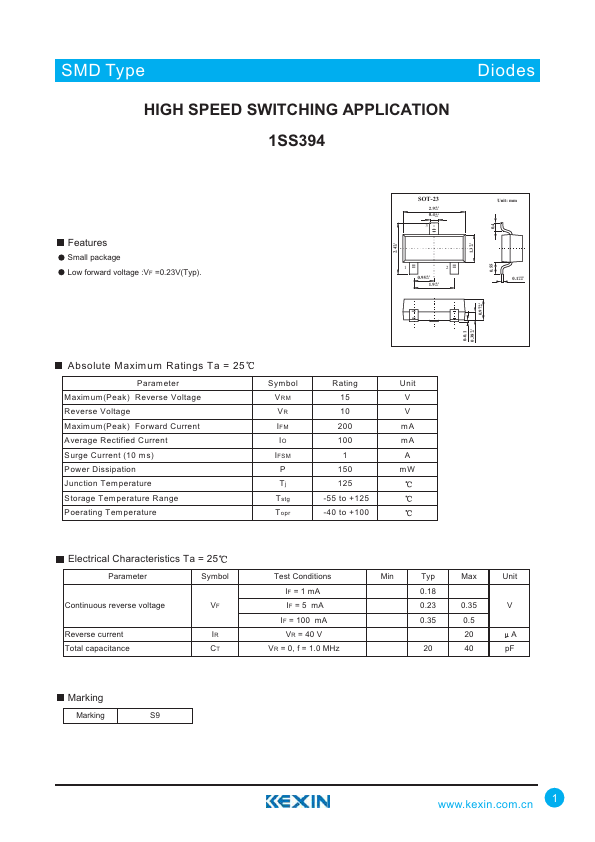

1SS394 Datasheet PDF

FEATURES

Small package Low forward voltage :VF =0.23V(Typ). +0.1 2.4 -0.1 SOT-23 2.9+0.1 -0.1 0.4+0.1 -0.1 3 1 2 0.95+0.1 -0.1 1.9+0.1 -0.1 Absolute Maxim um Ratings Ta = 25 P aram eter Maximum(Peak) Reverse Voltage Reverse Voltage Maximum(Peak) Forward Current Average Rectified Current Surge Current (10 ms) Power Dissipation Junction Temperature Storage Temperature Range Poerating Temperature Symbol VRM VR IFM IO IFSM P Tj Tstg Topr Rating 15 10 200 100 1 150 125 -55 to +125 -40 to +100 Unit V V mA mA A mW 0-0.1 +0.1 0.38 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 Unit: mm 0.1+0.05 -0.01 1.Base 2.Emitter 3.collector

ELECTRICAL CHARACTERISTICS

Ta = 25 Parameter Symbol Continuous reverse voltage VF Reverse current IR Total capacitance CT Test Conditions IF = 1 mA IF = 5 mA IF = 100 mA VR = 40 V VR = 0, f = 1.0 MHz Min Typ Max Unit 0.18 0.23 0.35 V 0.35 0.5 20 A 20 40 pF Marking Marking S9 1
