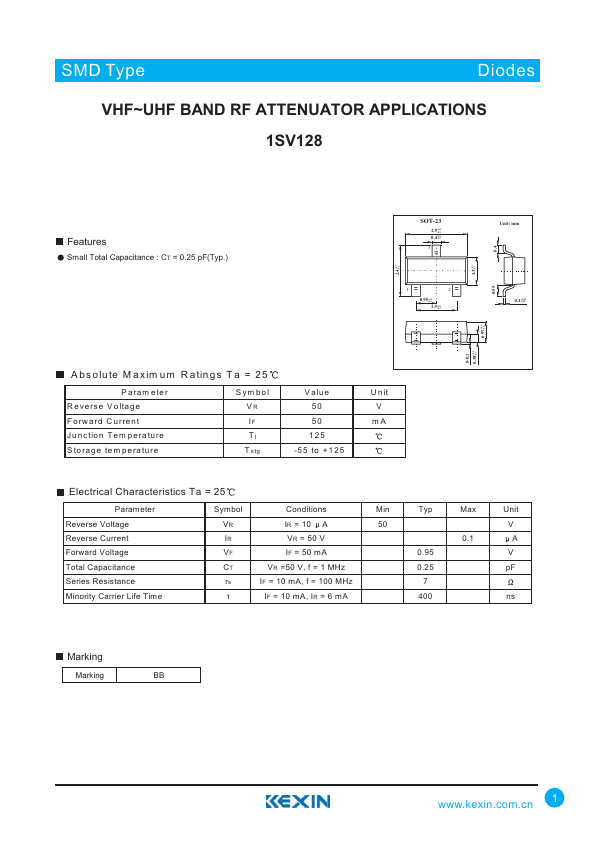

1SV128
Features
Small Total Capacitance : CT = 0.25 p F(Typ.)
+0.1 2.4 -0.1
SOT-23
2.9+0.1 -0.1
0.4+0.1 -0.1
0.95+0.1 -0.1 1.9+0.1 -0.1
A bsolute M axim um R atings T a = 25
Param eter R everse V oltage Forward Current Junction Tem perature Storage tem perature
Sym bol VR IF Tj T stg
V alue 50 50 125
-55 to +125
U nit V m A
0-0.1 +0.1 0.38
-0.1
+0.1 1.3 -0.1
+0.1 0.97 -0.1
Unit: mm
0.1+0.05 -0.01
1.Base 2.Emitter 3.collector
Electrical Characteristics Ta = 25
Parameter Reverse Voltage Reverse Current Forward Voltage Total Capacitance Series Resistance Minority Carrier Life Time
Symbol
Conditions
Min
Typ
Max
Unit
IR = 10 A
VR = 50...
